The effects of multiple environmental factors on global carbon allocation

Abstract

Background

The allocation of photosynthate among the parts of plants (e.g., leaves, wood tissues and roots) strongly regulates their growth, and this conditions the terrestrial carbon cycle. Recent studies have shown that atmospheric CO₂ and climate change dominate the changes in carbon allocation in plants, but the magnitude and mechanism of its effects remain unclear.

Methods

The Community Atmosphere Biosphere Land Exchange (CABLE) model can accurately simulate the responses of carbon allocation to environmental changes. This study quantifies the contributions of four environmental factors—atmospheric CO₂, temperature, precipitation, and radiation—on resource availability and carbon allocation from 1979 to 2014 by using the CABLE model.

Results

The results of the CABLE model showed that rising CO₂ significantly reduced carbon allocation to the leaves of plants at a global scale, but the other three environmental factors exhibited contrasting effects that dominated the rise in carbon allocation to the leaves. The increased precipitation and CO₂ significantly reduced the light availability and increased carbon allocation to the wooden parts of plants. By contrast, the rising temperature reduced the water availability, resulting in a decrease in carbon allocation to the wooden parts. All four environmental factors consistently exhibited negative effects on carbon allocation to the roots, with rising precipitation causing the largest reduction in carbon allocation to them. Moreover, except for CO₂, the effects of the other three environmental factors were heterogeneous owing to their variable interactions in different regions.

Conclusions

The CABLE model can accurately represent the mechanisms of response of resource availability and carbon allocation to environmental changes. Our study highlights the substantial environmental regulation of global carbon allocation. The responses of carbon allocation to global environmental changes need to be extensively studied through ecosystem models based on different hypotheses.

Background

Carbon allocation, or the allocation of photosynthate among the parts of plants (e.g., leaves, wood tissues and roots), is one of the most important physiological processes in nature (Xia et al. 2019; Sierra et al. 2022). It determines not only plant growth, but also numerous processes of the ecosystem, including decomposition, carbon and nitrogen sequestration, and the exchange of water between plans and the atmosphere (Aber and Melillo 1991). The carbon allocated to the woody tissues of plants has a longer residence time than that in their leaves or roots, where this significantly influences the global carbon budget (Friedlingstein et al. 1999; McMurtrie and Dewar 2013; Xia et al. 2017; Wei et al. 2022). Carbon allocation between the wooden and non-wooden parts of plants also determines the quality and rate of decomposition of litter (Bird and Torn 2006). Ise et al. (2010) found a large variation in estimates of wooden biomass that stemmed from different assumptions about the coefficients of carbon allocation. The ratio of carbon allocated to the stems of plants in forests according to the vegetation integrative simulator for trace gases (VISIT) model was found to be higher than that of the Biome-BGC model (e.g., 0.517 vs. 0.3 for tropical forests), because of which the wooden biomass simulated by the former model was 178 Pg C higher than that of the latter (Ise et al. 2010). Therefore, reliable estimates of the changes in carbon allocation are crucial for reducing uncertainty in modeling the global carbon cycle.

Carbon allocation varies substantially over space and time in the context of global climate change, but the effects of climate change on carbon allocation are not well understood. For example, a rising CO₂ concentration has exhibited divergent effects on carbon allocation in two long-term experiments on CO₂ enrichment—an increase in carbon allocation to the wooden parts of plants at Duke but a decrease in it at Oak Ridge—as a result of the different responses of the availability of nitrogen in soil to CO₂ enrichment (De Kauwe et al. 2014). Moreover, previous studies have highlighted the inconsistent responses of carbon allocation to the components of plants under warming conditions. Warmer climate has been reported to increase the NPP in boreal forests but reduce the growth of wood, while the limitation in nutrients resulting from rising temperatures leads to greater carbon allocation to the roots (Lapenis et al. 2013). However, there is a dearth of research on how carbon allocation among the components of plants varies with different environmental variables at the global scale, where this is important for understanding the effects of carbon allocation on the terrestrial carbon budget (Xia et al. 2015; Wang et al. 2023).

The modeled response mechanism of carbon allocation to environmental changes remains unclear. Theoretically, the dynamic characteristics of plant carbon allocation result from their response in terms of using carbon to capture the most limiting resources (e.g., light, water, and nutrients) (Sharpe and Rykiel 1991; Kobe et al. 2010). The limitation of critical resources, such as water and nutrients, can enhance carbon allocation to the roots of plants to increase their uptake and alleviate resource deficits (Ikegami et al. 2007; Matzek 2011; Peng et al. 2017; Brunn et al. 2022). Previous studies have suggested that an increase in the ratio of biomass of the roots to that of the shoots may play an important role in the adaptation of plants to drought (Nelson et al. 2004). By contrast, the limitation in the radiation absorbed by them increases carbon allocation to the leaves at the expense of that to the roots to increase absorption of incoming photosynthetically active radiation by them (Wang et al. 2006). Whether the observational data support the assumptions of these models of carbon allocation, and whether the modeled mechanism of the responses of plants to the processes of carbon allocation are correct still require further study.

In this study, we report five modeling experiments based on the Community Atmosphere Biosphere Land Exchange (CABLE) model to illustrate how carbon allocation varies with environmental variables. The objectives of this study are to (1) illustrate the effects of multiple environmental factors on resource availability and carbon allocation, and (2) reveal the response mechanisms of carbon allocation and resource availability to environmental changes according to the CABLE model.

Methods

CABLE model

The CABLE model is a global land-surface model that has been integrated with the CASA (Carnegie–Ames–Stanford approach)-CNP (carbon–nitrogen–phosphorous) model (CASA-CNP). This model can simulate the carbon, nitrogen, phosphorus, water, and energy cycles in terrestrial ecosystems (Wang et al. 2010; Zhang et al. 2011). Four phases of leaf phenology determine the growth and patterns of carbon allocation in leaves in the CABLE model. These are the phases of maximum and steady leaf growth, leaf senescence, and dormancy or no leaves. During the first phase, the ratio of carbon allocation to the leaves (aleaf) is set to 0.8, while those to the wood tissues (awood) and roots (aroot) are set to 0.1 for wooden plant functional types (PFTs), and zero and 0.2, respectively, for non-wooden PFTs. The ratios of carbon allocation (i.e., aleaf_p₂, awood_p₂, and aroot_p₂) in the second phase (phase 2) are calculated according to the resource limitation carbon allocation model. During the third and fourth phases, aleaf is set to zero while awood and aroot are calculated by using the allocation ratios of phase 2 (awood = awood_p₂/( awood_p₂ + aroot_p₂), aroot = aroot_p₂/( awood_p₂ + aroot_p₂)). For evergreen PFTs, the leaf phenology and carbon allocation persist in phase 2 throughout the year.

During the phase of steady leaf growth (i.e., phase 2), the allocation of photosynthate among the components of plants in the CABLE model is regulated by the availability of light, water, and nitrogen (hereinafter called the resource limitation model). This model assumes that the greatest part of the gain in carbon is allocated to the component of the plant that most limits its growth (Fig. 1). If the availability of light is limiting its growth, the plant allocates more carbon to the wood tissues, such as stems. If water and nitrogen are limiting growth, the plant allocates more carbon to the roots (Fig. 1). The resource limitation carbon allocation model uses the scheme developed by Friedlingstein et al. (1999). The allocation coefficients of woody biomes for their leaves (aleaf), woody tissues (awood), and roots (aroot) are as follows:

$$aroot = 3r_{0} \frac{L}{L + 2\min (W,N)},$$

(1)

$$awood = 3s_{0} \frac{\min (W,N)}{{2L + \min (W,N)}},$$

(2)

$$aleaf = 1 - awood - aroot.$$

(3)

Fig. 1

Fractions of allocation to the leaf (a), wood (b), and root (c) of the plant as functions of light (L), and the minimum values of the availability of water and nitrogen (Min(Water, Nitrogen)) for tree plant functional types (PFTs), with values of l₀ = 0.4, s₀ = 0.3, and r₀ = 0.3. Fractions of allocation for the leaves (d) and roots (e) in grass and crop PFTs, with values of l₀ = 0.7 and r₀ = 0.3

For non-woody biomes, the allocation coefficients are as follows:

$$aroot = 3r_{0} \frac{L}{L + 2\min (W,N)},$$

(4)

$$aleaf = 1 - aroot,$$

(5)

where min (W, N) represents the minimum values of the availability of water (W) and nitrogen (N). The parameters r₀ and s₀ in the CABLE model describe the proportional allocation to the roots and wood tissues when resources are not limited. For the tree PFTs, both r₀ and s₀ are set to 0.3, with an allocation of 0.4 to the leaves (l₀). For C3 grass and crop PFTs, r₀ = 0.3 and l₀ = 0.7 (Fig. 1).

Light availability (L) is calculated by:

$$L = \min [\max (e^{ - 0.5LAI} ,0),1],$$

(6)

where LAI is the leaf area index.

Water availability (W) is calculated by:

$$W = \min [\max (\sum\limits_{i = 1}^{n} {fr_{i} } \frac{{S_{wi} - S_{wilt} }}{{S_{field} - S_{wilt} }},0),1],$$

(7)

where fr_i is the fraction of root in the ith (n = 6) layer of soil, S_wi is the volumetric moisture content of soil in the ith layer, and S_wilt and S_field are the volumetric soil moisture contents at the wilting point and the field capacity soil moisture content, respectively.

Nitrogen availability (N) is calculated as the product of the temperature of soil (T_s) and moisture (W_s) (Friedlingstein et al. 1999), where T_s is calculated based on a standard Q₁₀ equation (Potter et al. 1993) and W_s is calculated by using Eq. (7):

$$N = T_{s} \times W_{s} ,$$

(8)

$$T_{s} = Q_{10}^{{\left( {\frac{{\sum\limits_{i = 1}^{n} {f_{ri} Tsoil - 30} }}{10}} \right)}} ,$$

(9)

where T_soili (°C) is the temperature of soil in the ith layer, and Q₁₀ = 2.0.

The performance of the resource limitation carbon allocation scheme in CABLE model was evaluated at five natural observation sites and four global change manipulation experiments (precipitation reduction, warming, and elevated atmospheric CO₂) in various ecosystems (Table 1 and Fig. 2b, Xia et al. 2017). The experiment at the C4 grass site in Oklahoma showed that the grass allocated more carbon to its roots under warming conditions. A precipitation control experiment at a rainforest site in Caxiuana showed that trees had decreased values of awood, and increased values of aroot and aleaf under drought conditions. The elevated atmospheric CO₂ (eCO₂) experiment at the evergreen needleleaf tree at the Duke site showed that the tree allocated more carbon to wood under the eCO₂ condition. The eCO₂ experiment at the deciduous broadleaf tree of the Oak Ridge site showed that the tree allocated more carbon to the roots under the eCO₂ condition. The CABLE was able to accurately simulate the responses of carbon allocation to environmental changes at those experimental sites (Xia et al. 2017). We thus used the CABLE model to explore the responses of plant carbon allocation to environmental changes (i.e., the dataset on precipitation, air temperature, and incident shortwave radiation obtained from the Modern-Era Retrospective Analysis for Research and Applications (MERRA), and data on atmospheric CO₂ concentration).

Table 1 The information of observation sites for evaluating carbon allocation model

Fig. 2

Global distribution of plant functional types in the CABLE model (a). The global ecological zones, and locations of the observation sites for carbon allocation (b)

Input data for CABLE model

The CABLE model was driven by the 1-hourly MERRA dataset (Global Modeling and Assimilation Office 2004), which contained data on the air temperature (Tair), precipitation (Prec), specific humidity (Qair), incident longwave radiation (Lwd), incident shortwave radiation (Swd), pressure (Ps) and wind speed (Wind) from 1979 to 2014. The spatial resolution of the data was 0.5° latitude by 0.67° longitude. The annual mean CO₂ concentration from 1850 to 2014 was obtained from research by Keeling and Whorf (2005). The fixed PFTs for 2005 were based on data from Lawrence et al. (2012) (Fig. 2a). The PFTs included evergreen needleleaf tree (ENT), evergreen broadleaf tree (EBT), deciduous needleleaf tree (DNT), deciduous broadleaf tree (DBT), shrub (SHB), C3 grass (C3), C4 grass (C4), tundra (TDR), and C3 crop (CROP). The global ecological zone for forest reporting by the FAO was used to analyze the results (Fig. 2b, FAO 2012).

Simulations

To determine the influence of the four environmental variables, i.e., atmospheric CO₂ concentration, precipitation, air temperature, and incident shortwave radiation, on the spatiotemporal patterns of carbon allocation, we performed five simulations (Table 2): (1) a control simulation, forced by the original MERRA climatic data and historical CO₂ observations from 1979 to 2014; (2) a CO₂_fixed simulation, forced by the original MERRA climatic data, with the atmospheric CO₂ concentration fixed at the 1979 level (337.0 ppm); and (3) Prec_fixed, (4) Tair_fixed and (5) Swd_fixed simulations, forced by the data on the hourly precipitation, near surface air temperature and incident shortwave radiation of 1979 for all simulation years and historical CO₂ observations, respectively. We then quantified the effects of changes in each environmental variable at an inter-annual scale after 1979 on the carbon allocation by calculating the difference in ratios of carbon allocation between the control simulation and simulations in which the inter-annual variations of the given environmental variable after 1979 were not considered (e.g., Prec_fixed simulation).

Table 2 Design of simulations of the CABLE model

We conducted a spin-up run and two transient runs for the simulations. For the spin-up run, we ran the model 20 times by recycling the MERRA climatic datasets from 1979 to 2014. The atmospheric CO₂ concentration at the 1850 level (280.0 ppm) was used for this. Once the model had reached equilibrium state, it was run in the first transient mode (1850–1978) with varying CO₂ concentrations while recycling the MERRA climate datasets from 1979 to 2014. The second transient mode covered the period 1979–2014, and the corresponding CO₂ concentrations and climatic variables were used according to the design of the five simulations (Table 2).

Results

Effects of inter-annual changes in environmental variables on carbon allocation

The environmental variables significantly changed from 1979 to 2014 across the globe. Along with a rising atmospheric CO₂ concentration, the global mean surface temperature increased by 0.72 °C over 36 years (Fig. 3d). Moreover, the incident shortwave radiation and precipitation exhibited a trend of growth, with rates of increase of 0.12 W m⁻² yr⁻¹ and 2.27 mm yr⁻¹, respectively (Fig. 3f, b). However, the climate variables were substantially spatially heterogeneous. Increased temperatures were observed in all plant functional types. The largest increase in the temperature was observed in the tundra, 0.04 °C yr⁻¹ (Table 3), while the lowest increase in temperature increases were observed in evergreen broadleaf tree, at 0.009 °C yr⁻¹ (Table 3). On average, the precipitation showed a trend of decline from 1979 to 2014 only in the evergreen needleleaf tree and the deciduous needleleaf tree, while the largest increase in precipitation occurred in evergreen broadleaf tree (Table 3). Radiation exhibited a large spatial heterogeneity, and significant decreased in the evergreen broadleaf tree, shrub and C4 grass (Table 3).

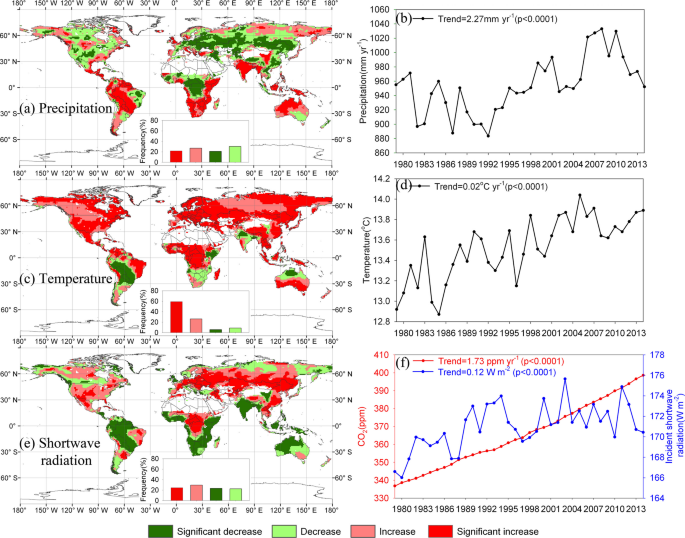

Fig. 3

The trends and inter-annual variations of the global mean precipitation (a, b), air temperature (c, d), incident shortwave radiation (e, f) and atmospheric CO₂ concentration (f) from 1979 to 2014

Table 3 Magnitudes and trends of the environmental variables from 1979 to 2014 in regions with different plant functional types (PFTs)

Climate change significant influenced resource availability. The global mean light availability showed a significantly decrease trend from 1979 to 2014 (Fig. 4a and Table 4). The model of carbon allocation in case of resource limitation showed that changes in light availability mainly depended on changes in the LAI. The largest decrease in light availability was caused by the greatest increase in the LAI as a result of the fertilization effect of CO₂ (Fig. 4a and d). Compared with the control simulation, the changes in air temperature increased the magnitude of global light availability (Fig. 4a and Table 4). The global precipitation exhibited a trend of an increase (Fig. 3b), and led to an increase in global water availability (i.e., soil moisture) from 1979 to 2014 (Fig. 4b and Table 4). Water availability exhibited the largest decrease in the Tair_fixed simulation (Fig. 4b and Table 4), reflecting the dominant influence of the rising temperature on it. The global mean nitrogen availability showed a significant trend of increase from 1979 to 2014 as a result of the dominant influence of increasing precipitation (Fig. 4c and Table 4).

Fig. 4

Inter-annual variations in the global mean availability of light (a), water (b), and nitrogen (c), and leaf area index (LAI, d) in the control simulation (right vertical axis and the red line). Differences in the four variables between the control simulation, and the fixed CO₂ (CO₂_fixed), fixed precipitation (Prec_fixed), fixed temperature (Tair_fixed), and fixed shortwave radiation (Swd_fixed) simulations (left vertical axis). For example, “Light_Control–Light_CO₂_fixed” refers to the difference in light availability between the control and the CO₂_fixed simulations, and negative values indicate that changes in CO₂ led to a decrease in light availability

Table 4 Magnitudes and trends of the global mean availability of light, water, and nitrogen from 1979 to 2014 in the control simulation

The effect of rising CO₂ levels on light availability was highly consistent across the globe. More than 83.54% of the global areas of land exhibited a significantly decreased light availability (Fig. 5a) as the LAI increased (Fig. 5d). Increased CO₂ concentrations led to an increase in water availability in 63.46% of the global areas of land (Fig. 5b), which in turn controlled the pattern of nitrogen availability except in the northern Amazon (Fig. 5c). Increased CO₂ resulted in decreased soil moisture in semi-arid and arid ecological zones (Figs. 2b and 5b). The simulations of the change in precipitation showed that the change in the moisture content of soil, nitrogen availability, and the LAI showed similar patterns to that of the trend of precipitation (Figs. 3a, 5f, g, and h). Thus, light availability exhibited the opposite pattern of change to that of precipitation (Figs. 3a and 5e).

Fig. 5

Trends of the differences in the availability of light (a), water (b), and nitrogen (c) as well as the leaf area index (LAI, d) between the control simulation and the fixed CO₂ (i.e., CO₂_fixed in Table 2) simulation. Trends of differences in the availability of light (e), water (f), and nitrogen (g) as well as the leaf area index (LAI, h) between the control simulation and the fixed precipitation (i.e., Prec_fixed in Table 2) simulation

Compared with those of the atmospheric CO₂ and precipitation, the effects of the temperature and shortwave radiation on the availability of resources and the LAI were more complicated (Fig. 6). Increased temperature led to a decrease in the availability of water in soil in 70.97% of the global area of land (Fig. 6b) and increased nitrogen availability at high northern latitudes (60° N to 90° N, Fig. 6c). The decrease in the LAI in the Congo rainforest due to warming was consistent with the decrease in water availability in this region (Figs. 3c, 6b, and d). The effects of shortwave radiation on water availability exhibited the oppose pattern to that of the shortwave radiation (Figs. 3e and 6f). In the Northern Hemisphere, the effect of the shortwave radiation on the LAI was consistent with its own trend (Figs. 3e and 6h), while the increase in the LAI was consistent with that in water availability caused by the change in the shortwave radiation in the Southern Hemisphere (Figs. 3e, 6f, and h).

Fig. 6

Trends of the differences in the availability of light (a), water (b), and nitrogen (c) as well as the leaf area index (LAI, d) between the control simulation and the fixed temperature (i.e., Tair_fixed in Table 2) simulation. Trends of differences in the availability of light (e), water (f), and nitrogen (g), and the leaf area index (LAI, h) between the control simulation and the fixed incident shortwave radiation (i.e., Swd_fixed in Table 2) simulation

Effects of climate change on carbon allocation

Global climate change has led to substantial changes in carbon allocation among the three parts of plants, i.e., roots, leaves, and wood tissues. The carbon allocation to the leaves (aleaf) and wood (awood) significantly increased from 1979 to 2014 (Fig. 7a, b, and Table 5), while its allocation to roots (aroot) decreased in this period (Fig. 7c and Table 5). However, the climatic variables had different effects on the changes in carbon allocation. The allocation to leaves was significantly reduced by rising atmospheric CO₂ concentration (Fig. 7a and Table 5). By contrast, the changes in precipitation and shortwave radiation enhanced the global mean carbon allocation to the leaves (Fig. 7a and Table 5). The rising atmospheric CO₂ and precipitation led to significant increases in awood (Fig. 7b and Table 5), but it significantly decreased with increasing temperature (Fig. 7b and Table 5). The rising precipitation contributed to the largest decrease in aroot (Fig. 7c and Table 5).

Fig. 7

Inter-annual variations in the global mean carbon allocation to the leaves (aleaf, a), wood (awood, b), and roots (aroot, c) of plants in the control simulation (right vertical axis and red line). Differences in the ratios of carbon allocation between the control simulation, and the fixed CO₂ (CO₂_fixed), fixed precipitation (Prec_fixed), fixed temperature (Tair_fixed), and fixed shortwave radiation (Swd_fixed) simulations (left vertical axis). For example, “aleaf_Control–aleaf_CO₂_fixed” refers to the difference in values of aleaf between the control and the CO₂_fixed simulations, while negative values mean that the changes in CO₂ concentration led to decrease in aleaf. CO₂ atmospheric CO₂ concentration; Prec precipitation; Tair air temperature; Swd incident shortwave radiation

Table 5 Magnitudes and trends of the global mean carbon allocation to the leaves (aleaf), wood (awood), and roots (aroot) of plants from 1979 to 2014 according to the control simulation

At the regional scale, the rising atmospheric CO₂ concentration increased awood to over 80% in woody plants (Fig. 8b). The allocation to leaves decreased with increasing CO₂ concentration in the wooden biomes, except at high northern latitudes (60° N to 90° N) and in Australia (Fig. 8a), while aroot exhibited a widespread decrease (Fig. 8c). In response to rising atmospheric CO₂ concentration, aroot consistently increased and aleaf consistently decreased in grasslands (Figs. 2, 8a, and c). Increased precipitation enhanced the values of awood (Figs. 8e and 3a), while it led to the largest increase in values of awood in shrubs (Fig. 8e). By contrast, aroot decreased with increasing precipitation (Figs. 8f and 3a). The response of aleaf to precipitation was complicated. For example, it increased with the increasing precipitation in Australia but increased with decreasing precipitation in the Congo Basin (Figs. 8d and 3a). The responses of the ratios of carbon allocation to the temperature were more complicated than those to the CO₂ concentration and precipitation because of the divergent influence of the temperature on nitrogen availability (Figs. 8g, h, i, and 6c).

Fig. 8

Trends of the differences in carbon allocation to the leaves (aleaf), wood (awood), and roots (aroot) between the control simulation, and fixed CO₂ (CO₂_fixed), fixed precipitation (Prec_fixed), fixed temperature (Tair_fixed), and fixed shortwave radiation (Swd_fixed) simulations. For example, “aleaf_CO₂” refers to the difference in carbon allocation to leaves between the control and the CO₂_fixed simulations. CO₂ atmospheric CO₂ concentration; Prec precipitation; Tair air temperature; Swd incident shortwave radiation

Discussion

The CABLE model was able to accurately simulate the processes of response of resource availability and carbon allocation to environmental changes. Elevated air temperature at the C4 grass site in Oklahoma increased the temperature of soil and reduced the availability of water in it, resulting in more carbon being allocated to the roots to efficiently capture water (McCarthy and Enquist 2007; Xu et al. 2012). A reduction in the rainfall reduced the availability of water in soil while increasing aroot and reducing awood at the Caxiuana site (da Costa et al. 2014). The CABLE model also correctly simulated the decreased availability of water in soil and increased aroot under warming and drought conditions (Xia et al. 2017). At the Duke site, the increase in CO₂ concentration enhanced the soil moisture by reducing stomatal conductance and transpiration per unit area of the leaf, and reduced light availability by stimulating leaf growth (McCarthy et al. 2010; Ward et al. 2013; De Kauwe et al. 2014). Both of these effects stimulated the values of awood. The CABLE model was able to accurately represent the effects of eCO₂ on the LAI, light and water availability, and carbon allocation (Xia et al. 2017). The increase in aroot at the Oak Ridge site might have been caused by a reduction in the availability of nitrogen in soil (Norby et al. 2010). The CABLE model could not completely reproduce the changes in carbon allocation at this site partly because of the complicated effects of eCO₂ on this deciduous forest ecosystem.

The rising atmospheric CO₂ concentration enhanced the LAI over most areas of the globe (Fig. 5d). It ultimately influenced carbon allocation by altering the LAI, which is an important property of the ecosystem that determines the surface temperature and soil water balance (Luyssaert et al. 2014; Shen et al. 2015). Rising CO₂ concentrations stimulated photosynthesis, which increased the LAI (Zhu et al. 2016). Our simulations showed larger increases in the LAI over low latitudes (Fig. 5d), which is consistent with the results of previous studies (Zhu et al. 2016). The enhanced LAI reduced light availability according to the self-shading rule, but had a weak effect on the availability of water and nitrogen (Table 4). Consequently, changes in these resources enhanced the allocation of carbon to wooden parts of plants and benefited the carbon storage of terrestrial ecosystems (Ise et al. 2010; Poorter et al. 2012).

The effects of eCO₂ on water availability were controlled by two processes in the CABLE model: (1) eCO₂ decreased the stomatal conductance and transpiration, which led to an increase in the soil moisture. (2) The increased LAI enhanced transpiration and reduced the soil moisture. The results of this study as well as previous ones support the mechanism of response of water availability to the eCO₂ as represented by the CABLE model (De Kauwe et al. 2013; Cheng et al. 2014). The decrease in the soil moisture in water-limited PFTs (i.e., shrubs and C3 grass) was caused by the increase in the LAI (Figs. 2, 5b, and d), where this is consistent with the study by Donohue et al. (2009). The C3 grass allocated more carbon to roots under water stress condition (Fig. 8c). With regard to the other PFTs, an increase in CO₂ concentration mostly led to an increase in the soil moisture (Fig. 5b). The decrease in carbon allocation to the roots in boreal evergreen needleleaf tree in particular was determined by the increase in the availability of water in soil (Figs. 2, 5b, and 8c).

The effects of precipitation on carbon allocation were substantially spatially heterogeneous owing to inhomogeneous changes in the precipitation and the responses of the ecosystem. Decreased precipitation was found in the most areas of the Northern Hemisphere, and restricted the growth of vegetation and reduced the LAI. However, the decreased precipitation increased soil temperature in the high latitude regions of the Northern Hemisphere (Figs. 3a and 9b) and stimulated vegetation growth (Yuan et al. 2014). Moreover, the increased precipitation in the Amazon rainforest did not enhance the LAI, but resulted in a slight decrease in it instead (Figs. 3a and 5h). One potential cause of this was the reduced radiation with increased precipitation (Myneni et al. 2007). Precipitation dominated the changes in soil moisture as well as nitrogen availability according to the CABLE model (Fig. 5f and g). In general, decreased precipitation reduced the soil moisture and the LAI, and increased the availability of light, while changes in both the soil moisture and light enhanced carbon allocation to the roots but restricted that to the wooden parts and leaves of plants (Waring 1991; Poorter et al. 2012; Perrin and Mitchell 2013).

Fig. 9

Differences in the temperature limitation factor [Ts, see Eq. (9)] in the availability of nitrogen between the control simulation, and the simulations in which certain climatic variables were kept constant. For example, “Ts_CO₂” refers to the difference in the temperature limitation factor between the control simulation, and the CO₂_fixed simulation. CO₂ atmospheric CO₂ concentration; Prec precipitation; Tair air temperature; Swd incident shortwave radiation

The effects of the temperature and shortwave radiation on carbon allocation are mainly accomplished by influencing the soil moisture and LAI in the CABLE model. Warming increased evaporation and reduced the soil moisture (Figs. 3c, 3e, 6b, and f), where this outcomes is consistent with that reported in previous studies (Xu et al. 2013; Samaniego et al. 2018). The reduced soil moisture led to increased carbon allocation to the roots of plants (Fig. 8i). Warming resulted in an increased LAI in most regions with boreal evergreen needleleaf tree and the tundra (Figs. 2 and 6d), where this is consistent with findings based on remote sensing observations (Piao et al. 2020). This process increased the allocation of carbon to wood tissues in the relevant PFTs (Fig. 8h).

The responses of carbon allocation to climate change were influenced by several uncertainties in the former in the CABLE model. Empirical equations for the availability of nitrogen led to uncertainties in the dynamics of the response of nitrogen in the soil to climate change and its effects on carbon allocation. This empirical equation assumed that spatial variability in the mineralization of nitrogen and the decomposition of the organic matter in soil were identical (Townsend et al. 1995). The availability of nitrogen is calculated as the product of the abiotic factors of the temperature and moisture (Potter et al. 1993). The abiotic factor of the temperature has a standard Q₁₀ formulation, while the availability of nitrogen increases with the temperature. However, the simulations on warming suggested that elevated temperature tended to increase the net nitrogen mineralization in the first year but reduced decrease it in the subsequent years, a process that is attributable to stimulated plant growth and belowground carbon allocation that enhanced the immobilization of microbial nitrogen (Wan et al. 2004). Moreover, the soil moisture strongly regulated the aerobic and anaerobic conditions, which determined the magnitude of nitrification and denitrification as well as the availability of nitrogen (Xu and Prentice 2008). However, the effects of soil moisture on the availability of nitrogen were largely spatially heterogeneous.

Moreover, light condition is one of the most important environmental factors influencing carbon allocation (Iszkuło and Boratyński 2004, 2006). However, the availability of light was not calculated from downwelling radiation, but from leaf area index because the plant at the lower canopy might have had increased access to light through increased allocation of carbon to the stem (Friedlingstein et al. 1999). This method has been used in several models, including Canadian terrestrial ecosystem model (CTEM; Arora and Boer 2005), organizing carbon and hydrology in dynamic Ecosystems (ORCHIDEE; Krinner et al. 2005), and adaptive dynamic global vegetation model (aDGVM; Scheiter and Higgins 2009). Numerous experiments have shown that plants allocate a higher fraction of carbon to stems and leaves under a low incident radiation above the canopy (Poorter et al. 2012). For example, compared with plants grown at higher irradiance, shaded plants generally have a higher specific leaf area (SLA), and allocate more biomass to the leaves than to the roots for the efficient capture of light (Poorter 1999; Franck et al. 2007; Feng and Li 2007). The effect of downwelling radiation on the carbon allocation to the leaves should be considered in the terrestrial ecosystem model (Chen et al. 2020).

Conclusions

In this study, we used the global land-surface model CABLE to investigate the contributions of changes in atmospheric CO₂ concentration, precipitation, air temperature, and incident shortwave radiation to global carbon allocation from 1979 to 2014. The model showed that rising atmospheric CO₂ concentration had reduced the availability of light and increased that of water at a global scale, where this had enhanced carbon allocation to the wood tissues of plants. By contrast, the global mean precipitation exhibited an increasing trend, leading to an increase in the availability of water and a decrease in that of light. This had led to a reduction in carbon allocation to the roots and an increase in allocation to the wooden parts of plants. Rising atmospheric CO₂ concentration had led to a uniform increase in carbon allocation to wooden parts of the plants as well. However, the responses of the ratios of carbon allocation to temperature exhibited a large spatial heterogeneity, and were more complicated than those of the CO₂ concentration and precipitation because of the opposite effects of air temperature to the soil temperature and moisture. Although the observations of four manipulation experiments show that the CABLE model can accurately reflect the response mechanism of resource availability and carbon allocation to environmental change, there is still uncertainty in the inference of carbon allocation for different plant functional groups at the global scale. More studies are needed to model and verify the responses of carbon allocation by plants to multiple environmental changes based on models and field experiments in the future.
