Prediction of soil organic carbon stock combining Sentinel-1 and Sentinel-2 images in the Zoige Plateau, the northeastern Qinghai-Tibet Plateau
Ecological Processes volume 13, Article number: 32 (2024)
Abstract
Background
Soil organic carbon (SOC) is a critical component of the global carbon cycle, and an accurate estimate of regional SOC stock (SOCS) would significantly improve our understanding of SOC sequestration and cycles. Zoige Plateau, locating in the northeastern Qinghai-Tibet Plateau, has the largest alpine marsh wetland worldwide and exhibits a high sensitivity to climate fluctuations. Despite an increasing use of optical remote sensing in predicting regional SOCS, optical remote sensing has obvious limitations in the Zoige Plateau due to highly cloudy weather, and knowledge of on the spatial patterns of SOCS is limited. Therefore, in the current study, the spatial distributions of SOCS within 100 cm were predicted using an XGBoost model—a machine learning approach, by integrating Sentinel-1, Sentinel-2 and field observations in the Zoige Plateau.
Results
The results showed that SOC content exhibited vertical distribution patterns within 100 cm, with the highest SOC content in topsoil. The tenfold cross-validation approach showed that XGBoost model satisfactorily predicted the spatial patterns of SOCS with a model efficiency of 0.59 and a root mean standard error of 95.2 Mg ha−1. Predicted SOCS showed a distinct spatial heterogeneity in the Zoige Plateau, with an average of 355.7 ± 123.1 Mg ha−1 within 100 cm and totaled 0.27 × 109 Mg carbon.
Conclusions
High SOC content in topsoil highlights the high risks of significant carbon loss from topsoil due to human activities in the Zoige Plateau. Combining Sentinel-1 and Sentinel-2 satisfactorily predicted SOCS using the XGBoost model, which demonstrates the importance of selecting modeling approaches and satellite images to improve efficiency in predicting SOCS distribution at a fine spatial resolution of 10 m. Furthermore, the study emphasizes the potential of radar (Sentinel-1) in developing SOCS mapping, with the newly developed fine-resolution mapping having important applications in land management, ecological restoration, and protection efforts in the Zoige Plateau.
Introduction
Soil organic carbon (SOC), which is approximately 2 to 2.5 times higher than the carbon stocks of other biosphere compartments (atmosphere and vegetation) within the 1 m depth range (Lal 2004), represents the largest carbon reservoir of about 1500 Pg C (1 Pg = 1015 g) in terrestrial ecosystems globally (Jin et al. 2017). Thus, even minor changes in SOC reservoirs and emissions can significantly impact atmospheric CO2 concentrations, positively feedbacking global climate change. Human-induced extreme climate events disrupt the equilibrium of SOC exchange between the atmosphere and soil, making SOC a significant source of excess atmospheric CO2 emissions (Dash et al. 2019). Although a large number of studies predict SOC distribution at site, regional and global scales (Hengl et al. 2017; Tang et al. 2017), large variabilities still exist in amount and distribution due to different modeling approaches, data sources and spatial resolutions. Global estimates of SOC have greatly advanced our understanding of the amount, distribution and driving mechanisms at a global scale; however, low spatial resolution (> 250 m) of global SOC have constrained their use in small scales that require fine spatial resolution of SOC (< 10 m). Therefore, the development of rapid, non-destructive, and cost-effective detection methods in predicting SOC is crucial for implementing effective soil management measures and optimizing soil utilization to maintain healthy soil ecosystems (Marchant et al. 2015; Six and Paustian 2014).
Remote sensing technology is an effective approach to study the spatial patterns of SOC stock (SOCS) while reducing cost of field sampling and laboratory analysis (Zhou et al. 2023a). Remote sensing-based SOCS is commonly predicted based on the quantitative relationship between field SOCS observations and vegetation indices (Zhou et al. 2020), or spectral bands to understand the spatial patterns of SOCS (Zhou et al. 2021). Increasing availability of satellite sensors, e.g., multispectral and radar, has enriched land surface information for SOCS prediction, and have been validated for mapping SOCS in different ecosystems (Castaldi et al. 2019b; Gholizadeh et al. 2018a; Zhou et al. 2021). The majority of studies have relied on optical satellite sensors, and the commonly derived variables included surface reflectance and vegetation indices (Cao and Ling 2021; Castaldi et al. 2019b). For example, Castaldi et al. (2019b) used Sentinel-2 predicted SOCS in a cropland, while Geng et al. (2024) applied Landsat 9 to assess the spatial variation of SOC in northeast China. However, optical satellites (e.g., Sentinel-2 and Landsat images) suffered from cloud cover and limited penetration depth, which restricts their ability to detect SOC below the soil surface, constraining their applications in SOCS prediction. Therefore, relying solely on optical sensors might be insufficient for accurately estimating SOC (Tang 2013). On the other hand, radar images possess the ability to penetrate clouds and can provide imagery all-weather, day-and-night supply of imagery of Earth’s surface (Ren et al. 2021). Radar sensors (e.g., Sentinel-1) can also obtain valuable information concerning the vegetation canopy and soil. Thus, combining optical satellite images and radar data is regarded as an innovative approach (Zhou et al. 2020; Zhou et al. 2023a). Zhou et al. (2020) leveraged data from Sentinel-1 and Sentinel-2 satellites to assess the potential of various machine learning algorithms in predicting SOCS. Their findings indicate that, compared to individual sensors, a multi-source sensor approach demonstrates greater accuracy in SOCS prediction. Therefore, combining Sentinel-1 and 2 images with a spatial resolution of 10 m offers a nice probability to predict the spatial patterns of SOCS.
In addition to using various remote sensing image data, it is also crucial to select appropriate algorithms to improve the accuracy of predicting SOCS (Ghatasheh et al. 2022). Commonly used machine learning algorithms include Classification and Regression tree, Random Forest, Support Vector Machine, XGBoost (Lei 2019). For instance, Rentschler et al. (2019) explored the potential of Random Forest and Support Vector Machine to predict the spatial distribution of SOCS in horizontal and vertical soil layers and revealed that the exponential depth function combined with the Random Forest method improved the depiction of the spatial distribution of SOCS. Meanwhile, Gebauer et al. (2019) used accelerated regression tree and differential evolution algorithm to predict SOCS of the dry forest ecosystem in southwest Ecuador and found the beneficial impact of the differential evolution algorithm on improving the precision of predictions. Therefore, the application of multiple remote sensing data and machine learning algorithms has large potentials to enhance the predictive accuracy of SOCS.
The Zoige Plateau, located in the northeastern part of the Qinghai-Tibet Plateau, has the largest alpine marsh wetland worldwide, owing to its unique climatic and hydrological conditions, as well as its topographic and soil characteristics (Ma 2013). These wetlands are highly sensitive to climate change and anthropogenic disturbances. Since the 1970s, climate change, artificial drainage, peat extraction and over livestock grazing has reduced wetland areas by more than 30% in the Zoige Plateau (Wu et al. 2011), which may have a significant impact on SOCS. Therefore, estimating SOCS in the Zoige Plateau has been a long-term focus at both site and regional scales. At a site scale, Ye et al. (2023) assessed topsoil (0–10 cm) SOC content and SOCS changes following different vegetation restoration practices, and Chen et al. (2014) measured SOC content and carbon age down to 6 m at seven sites, while Cao and Ling (2021) predicted the spatial patterns of SOCS within a depth of 0–30 cm using the stepwise regression method combined with vegetation indices, texture characteristics, and topographic features from GF-1 image. Moreover, a recent study estimated the spatial patterns of SOCS within 100 cm using kriging approach in Zoige and Hongyuan County (Ma et al. 2016); however, the relative coarse resolution of 1 km and the lack of field validation of kriging models might constrain the application to land management at a small scale, requiring an urgent SOCS mapping at a fine resolution across the Zoige Plateau.
To fill this substantial knowledge gap, we combined Sentinel-1 and Sentinel-2 to predict the spatial patterns of SOCS using XGBoost, a machine learning approach in the Zoige Plateau. The main objectives were to: (1) Explore the vertical distribution characteristics of SOCS down to 100 cm soil profile; (2) Develop machine learning based model for SOCS prediction; (3) Investigate the spatial distributions of SOCS; and (4) Quantify total SOCS across the Zoige Plateau.
Materials and methods
Study area
The Zoige Plateau, located in the upper reaches of the Yellow River in the northeastern Tibet Plateau, covers an area of approximately 12,000 km2 and has an elevation range of 3400 to 3900 m above sea level (Li et al. 2020). Zoige has a plateau cold temperate zone, characterized by sub-cold climatic conditions, high precipitation, and humidity levels, with an annual average precipitation of around 600–800 mm (Jin et al. 2020). The region has an annual average temperature of approximately 1 °C, with the coldest month in January and the warmest month in July. Zoige experiences a long winter from October to April of the following year and a short summer from May to September (Qiu et al. 2009). The vegetation types are alpine meadow and marsh meadow, dominated by Kobresia kansuensis, Carex muliensis, Carex lasiocarpa, Kobresia setchwanensis, Blysmus sinocompressus and Elymus nutans, etc.
Field observations
Before conducting field observations, a pre-selection of field observational sites was conducted based on grassland distributions, vegetation coverages and elevations to ensure that our field sites had a broad coverage of the whole Zoige Plateau. Finally, a total of 59 sampling plots (Fig. 1) were selected to ensure their representativeness and the access across the Zoige Plateau in 2019. The general information of vegetation types, vegetation coverages and elevations of field sites were shown in Table 1. Within each site, a square plot with a 1 m × 1 m was set. Soil samples were collected at four layers: 0–10, 10–30, 30–50, and 50–100 cm, which resulted in 236 soil samples in total. The fresh weight of each soil sample was measured using a balance, and the samples were placed in labeled bags. The bags were then sealed and arranged in sequential order in storage baskets for subsequent laboratory analysis involving the removal of roots, stones, and debris. Then, the soil samples were air-dried and finely grounded through a 0.15 mm sieve, and SOC content was measured. Intact soils were collected using a soil ring knife to determine soil bulk density and sand content for each soil sample. SOC content was analyzed using the potassium dichromate heating method (Knicker et al. 2007), then, SOCS (Mg ha−1) was calculated (Huang et al. 2013):
where BDi is the soil bulk density of layer i (g cm−3); SOCi is the SOC content of layer i (g kg−1); Si is sand content of layer i (%); Di is the soil thickness of layer i (cm).
The Kruskal–Wallis test was employed to examine the significance of the differences in SOC content and SOCS distribution across soil depths.
Remote sensing data and preprocessing
Sentinel-1 is an all-weather radar imaging system, which was developed by the European Commission and the European Space Agency for the Copernicus Global Earth Observation Project. The Sentinel-1 imaging system operates in the C-band and has four imaging modes, providing technical support for long-term monitoring of a given region due to its dual polarization capability, short revisit period, and fast product production (Plank 2014). In this study, two remote sensing images of Sentinel-1 IW GRD acquired on September 18, 2019 with a spatial resolution of 10 m were selected. The ESA software SNAP was used to preprocess the Sentinel-1 images, which included orbit correction, thermal noise removal, radiometric calibration, speckle filtering, and terrain correction. Finally, the VV and VH polarization backscatter coefficients were obtained.
Sentinel-2 is a high-resolution multispectral imaging satellite that carries a Multispectral Imager (MSI) at a height of 786 km with 13 spectral bands. The Sentinel-2 image data is unique in having three specialized red-edge bands, which makes it particularly effective for monitoring vegetation health information. Four remote sensing images of Sentinel-2 L2A were selected on September 18, 2019.
In this study, we selected the VV and VH bands of Sentinel-1 radar data and their corresponding 16 texture indices, as well as B1, B2, B3, B4, B5, B6, B7, B8, B8A, B10, B11, and B12 bands of Sentinel-2 data and their corresponding 96 texture indices (Table 2) as variables. In addition, we calculated eight vegetation indices resulting in a total of 134 variables. Previous studies have suggested that vegetation and texture indices based on band reflectivity can help improve the estimation accuracy of SOCS (Wang et al. 2019b).
Feature selection
Based on the coordinates of each site, texture and vegetation indices were extracted. Before feature selection, SOCS within 100 cm was summed of four layers (0–10, 10–30, 30–50, and 50–100 cm). In order to reduce the calculating cost and improve the modeling efficiency, the gradient boosting algorithm was used for feature selection. One advantage of gradient boosting algorithms is that they allow for obtaining the importance score of each attribute relatively easily after creating the boosting trees. In general, the importance score measures the value of a feature in the decision tree construction of the model. The more an attribute is used to construct decision trees in the model, the higher its importance. The attribute importance is calculated by computing and ranking each attribute in the dataset. In a single decision tree, attribute importance is calculated by the quantity that improves the performance metric by each attribute split point, weighted by the nodes it is responsible for and the number of times it is recorded. That is, the greater the improvement of the performance metric by an attribute at a split point (closer to the root node), the greater the weight assigned to it, and the more important the attribute is as it is selected by more boosting trees. The performance metric can be the Gini purity for selecting split plots or other scoring functions. Finally, the results of each attribute in all boosting trees are weighted and summed before being averaged to obtain an importance score (Bentéjac et al. 2021; Mayr et al. 2014).
During the feature selection process, the XGBoost model parameters were configured as follows: max_depth = 1, eta = 8/10, silent = 1, objective = 'reg:linear', nround = 150, nthread = 2, verbosity = 0, etc. Optimal model parameter selection involved iteratively training each parameter value with the optimal seed number, ultimately determining the optimal model parameters. The xgb.importance function was then employed to select the top 15 most important variables from the dependent variables. Subsequently, utilizing the recursive feature elimination principle, the model underwent tenfold cross validation training, initially starting with 15 variables and iteratively discarding the least important variable in each cycle. Finally, the results indicated that the highest efficiency was achieved when six variables were involved in model training (Demir and Şahin 2022; Zhang et al. 2022).
XGBoost model
In this study, we selected the XGBoost model as the core algorithm, which was motivated by its effectiveness in feature selection. XGBoost initially proposed by Tianqi Chen is derived from one of the boosting algorithms and its core idea was to combine classification and regression trees (CART) to form a robust classifier (Chen and Guestrin 2016). This was improved on Gradient Boosting Decision Tree (GBDT), making it more versatile and powerful. Within the XGBoost framework, we assessed the performance and significance of the initial feature set by constructing decision trees for regression estimation. This approach facilitated the derivation of importance scores for feature variables. Moreover, XGBoost demonstrated considerable computational acceleration, thereby enhancing model efficiency (Zheng et al. 2017). As a result, XGBoost has gained widespread application in various fields due to its high accuracy, parallel processing and portability, stability and lack of overfitting (Chen et al. 2019).
XGBoost has several parameters, and the following are some of the most critical parameters used in this study: (1) Gamma—a minimum loss reduction required to make a further partition on the tree’s leaf nodes; (2) Min_child_weight—the sum of minimum leaf node instance weights; (3) Max_depth—the maximum depth of a single tree; (4) Subsample—the proportion of random samples per tree; (5) nrounds—the maximum boosting iterations; and (6) Eta—controls the learning rate: when adding the contribution of each tree to the current estimate, scale by a factor of 0 < eta < 1. The lower the eta value, the higher the nrounds value. A lower eta value means that the model is more robust to overfitting, but the computation speed is slow (Chen et al. 2019).
After the feature selection, the XGBoost model was used to predict the spatial distribution of SOCS. The XGBoost model was trained using the caret software package in R, with defined parameters such as method = “cv”, number = 10, savePredictions = ‘final’, etc. During the model training, the best model was selected automatically by caret, then raster::predict function was applied to predict the spatial pattern of SOCS.
Model efficiency

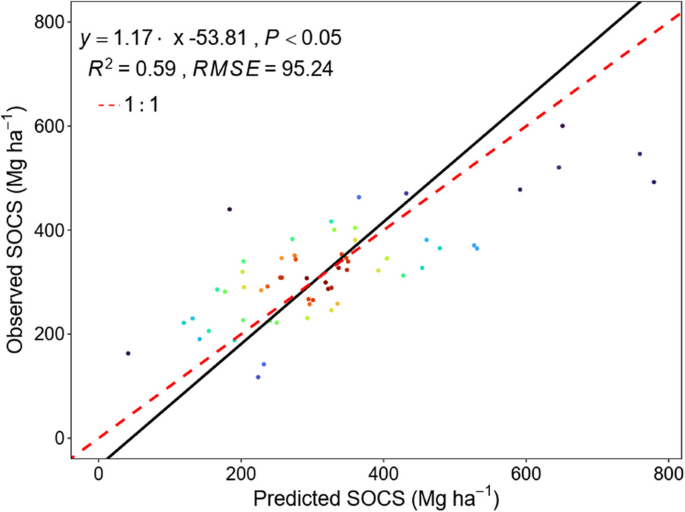

The model accuracy was evaluated based on tenfold cross-validation. Its principle was to randomly divide the whole dataset into ten nearly equal-sized parts and iteratively use nine of them for training and the remaining one for validation. The accuracy of each validation dataset was used as the evaluation criterion (Fushiki 2011). The final validation result was obtained by averaging the outcomes of tenfold cross validation (Singh and Panda 2011). The model prediction accuracy is evaluated using the root mean square error (RMSE, formula 2) and R-squared (R2, formula 2 and 3). The RMSE value reflects the relative dispersion between the predicted value and the observed value, while R2 indicates the closeness between the predicted value and the observed value. The R2 value ranges from 0 to 1, and the closer it is to 1, the smaller the RMSE value will be.
where n represents the number of samples, Pi and Oi represent the predicted and observed SOCS, respectively.
Results
Vertical distribution SOC and SOCS

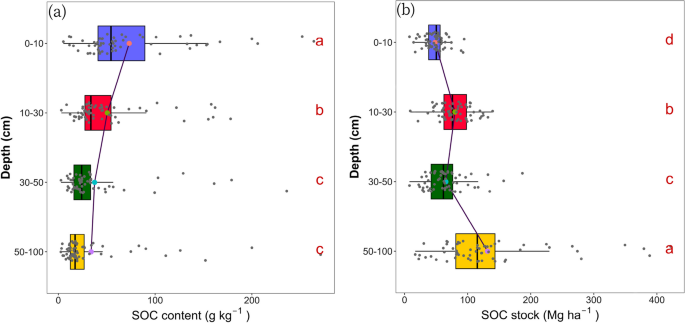

SOC content decreased with increasing soil depth (Fig. 2a) and exhibited a clear vertical spatial distribution pattern. Mean SOC content decreased from 73.2 g kg−1 for 0–10 cm to 33.9 g kg−1 for 50–100 cm with a weighted average (by depth) of 41.9 g kg−1 within 100 cm. Kruskal–Wallis test showed that soil depth had a significant impact on SOC content (\(p\) < 0.01). Mean SOC content at 0–10 cm was significantly different with 10–30 cm, 30–50 cm, and 50–100 cm, while no significant difference was observed between the 30–50 cm and 50–100 cm.
SOCS demonstrated different patterns compared to SOC content (Fig. 2b), which tended to increase with soil depth (except 10–30 cm) due to different soil depths. Mean SOCS was 48.8 ± 17.5 Mg ha−1 for 0–10 cm, 80.1 ± 27.0 Mg ha−1 for 10–30 cm, 65.6 ± 33.4 Mg ha−1 for 30–50 cm, and 131.5 ± 90.3 Mg ha−1 for 50–100 cm, respectively. The Kruskal–Wallis test revealed that soil depth had a significant impact on SOCS (\(p\) < 0.01). Mean SOCS differed significantly among the 0–10, 10–30, 30–50 and 50–100 cm.
Spatial modeling

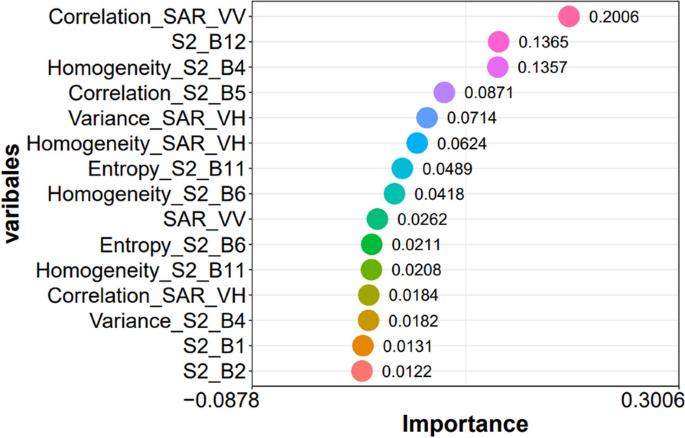

The gradient boosting algorithm was employed to perform variable selection for SOCS, resulting in the identification of 15 important variables (Fig. 3). After feature selection, the top six variables were chosen to construct the model. Correlation_SAR_VV emerged as the most crucial variable in the model, followed by S2_B12 and Homogeneity_S2_B4 (see Fig. 4, 5).
Spatial distributions
The spatial patterns of SOCS were generally heterogenous (Fig. 6). The study revealed that areas SOCS near wetlands, forests, and rivers were notably higher, whereas those situated at a longer distance from these areas exhibited lower SOCS levels. Spatially, soils with ample moisture demonstrated high SOCS, while SOCS tended to be low with low soil moisture. Predicted SOCS within ranged from 75 to 660 Mg ha−1 with relative high SOCS value in grassland. Average SOCS within 100 cm was 355.7 Mg ha−1, totaled 0.27 × 109 Mg carbon across the Zoige Plateau.
Discussion
Vertical variations of SOC content
SOC content showed a decreasing trend with increasing soil depth and significant differences were found among 0–10 cm, 10–30 cm, and 30–50 cm depths (\(p\) < 0.01, Fig. 2a). These findings are consistent with previous studies conducted by Wei et al. (2023) and Fan et al. (2018). Such result was mainly related to carbon input from vegetation roots (both through root exudates and root mortality) and litter, soil leaching and microbial activities (Feida et al. 2016). The alpine grassland ecosystem of Zoige was dominated by herbaceous and shrub vegetation, e.g., Cyperaceae and Poaceae, and the majority (86–95%) of root biomass was distributed in topmost 30 cm, with over 75% of vegetation roots concentrating within 10 cm (Li et al. 2004). As the increases of soil depth, the decreasing vegetation roots and oxygen limited carbon input and microbial activities in subsoil layers (Gomes et al. 2019). Therefore, SOC content still experienced a decreasing trend from 30–50 cm to 50–100 cm, although the difference in SOC content between 30–50 cm and 50–100 cm was not statistically significant (\(p\) > 0.05). Although SOCS showed an increasing trend along soil depth, it was related to the different depths of each soil layer. If the depth of each layer was consistent, there was still a decreasing trend with the increasing soil depth with high SOCS in topsoil and low SOCS in subsoil. On the other hand, higher SOC in topsoil layer indicated high risks of large amounts of carbon loss from topsoil when significant human activities occur in the Zoige Plateau. Our results further highlight the urgent soil protection from over grazing and sandification under warming climate.
SOC content was 73.2, 50.6, 37.4 and 33.9 g kg−1 for 0–10 cm, 10–30 cm, 30–50 cm and 50–100 cm, respectively, which were generally higher than mean SOC content from 0–100 cm reported in previous studies, with 23.31 g kg–1 in Heihe River Basin (Wei et al. 2023), 12.87 g kg−1 in the Loess Plateau (Yu et al. 2019) and 12.09 g kg−1 in the Tuojiang River Basin (Wang et al. 2023). High SOC content was mainly resulted from low temperature in the Zoige Plateau. For example, mean temperature was 1 °C with the lowest temperature of − 10.5 to − 7.9 °C in January and the highest temperature of 10.9 to 11.4 °C in July. The low temperature contributed to reduced soil microbial activity and low organic matter decomposition, creating favoring carbon accumulation (Bai et al. 2013; Gao et al. 2007).
Even in the alpine meadows of Zoige, where the soil depth ranges from 50 to 100 cm, the average SOC content (33.9 g kg−1) is significantly higher than the average surface SOC content (14.3 g kg−1) in cultivated soils across China (Li et al. 2022). When compared to other plain ecosystems, SOC content in the alpine meadows of Zoige is consistently high (Cai et al. 2013). For instance, in the Luya mountain typical forest, the surface SOC content can reach up to 29.93 g kg−1, but it declines to near-zero levels at a depth of 100 cm (Wu et al. 2011). In the grassland ecosystems of the Loess Plateau, the surface SOC content is highest at 8.45 g kg−1, while it drops to only 0.99 g kg−1 at a depth of 100 cm (Cheng et al. 2012). Some studies suggest that the distribution of SOC in Zoige can extend as deep as 4 m (Cai et al. 2013). These findings highlight the unique characteristics of SOC distribution in the Zoige Plateau compared to other ecosystems and act as a critical carbon pool in terrestrial ecosystems.
Model and method selection for SOCS modeling
Our results indicated that the overall performance of the XGBoost method was favorable, consistent with previous findings (Wang et al. 2019a; Yu et al. 2020). Zhou et al. (2020a) demonstrated that machine learning algorithms based on boosting methods exhibited significantly superior predictive performance for SOCS compared to random forest (RF) and support vector regression (SVR). This could be attributed to the iterative nature of boosting algorithms, which progressively enhanced prediction accuracy by iteratively improving upon previous results. Moreover, the incorporation of regularization terms in the XGBoost method based on tree complexity reduced model variance, prevented overfitting, and further enhanced prediction accuracy. These factors consistently contributed to superior predictive outcomes obtained with the XGBoost method when compared to traditional boosted regression trees (BRT) and RF methods in numerous prior studies. However, these conclusions differ from those reported by Mahmoudzadeh et al. (2020), who argued that RF outperformed other methods in terms of predictive performance. This indicates that the uncertainties inherent in XGBoost and other machine learning prediction techniques were frequently influenced by various factors, including the abundance of SOCS in the study region, the choice of environmental variables, and modeling inaccuracies. There was no universally standardized prediction approach that guarantees the optimal performance of predictive models (Gomes et al. 2019; Zhou et al. 2020; Zhou et al. 2023b). Therefore, it was crucial to conduct extensive analysis and testing to determine the optimal prediction method. Furthermore, considering time efficiency aspects, the parallel learning capability supported by the XGBoost method leads to relatively faster model execution speed compared to BRT and RF methods (Chen and Guestrin 2016). Additionally, the findings demonstrated high efficiency exhibited by the XGBoost method in predicting SOCS in the Zoige Plateau.
Besides, the selection of remote sensing imagery played a crucial role in determining the modeling accuracy of SOCS (Gholizadeh et al. 2018b; Zhou et al. 2020). Through comparing various satellite images in different areas, Castaldi et al. (2019a) found that the choice of remote sensing data and study area has varying degrees of influence on prediction accuracy. Earlier studies on SOCS prediction predominantly relied on a single type of sensor, such as Landsat or MODIS. For instance, Vaudour et al. (2013) and Gholizadeh et al. (2018b) examined the potential of Sentinel-2 optical data in predicting soil properties. This is attributed to the strong correlation between soil properties and vegetation cover, where vegetation indices are able to capture variations in soil properties, especially SOCS (Gholizadeh et al. 2018b).
In the present study, the combined use of Sentinel-1 and Sentinel-2 images demonstrated that Correlation_SAR_VV from S1 (Sentinel-1) was the most important variable in predicting SOCS (Fig. 3), because Sentinel-1 imagery can effectively predict SOCS by capturing short-term vegetation changes. Similarly, Yang and Guo (2019) reported a significant correlation between backscattering coefficients obtained from Sentinel-1 images and SOCS. The model construction primarily focused on S1 and S2 band reflectance and their derived indices, while indices like NDVI were not selected by the XGBoost model. Although this finding contradicts the previous belief that NDVI is an important indicator for predicting SOCS, it aligned with the findings of Zhou et al. (2020a). Importantly, the texture index of the Sentinel-1 VV band was identified as the most significant variable, implying that Synthetic Aperture Radar (SAR) data can enhance the modeling accuracy in predicting SOCS, because S1 and S2 reflectance and derived indices carry more essential information for SOCS than vegetation indices. These results demonstrated that combining optical and radar sensors can effectively improve the modeling accuracy for modeling SOCS, particularly in regions that face cloud cover challenges like the Zoige Plateau. However, this finding contradicts the report by Shafizadeh-Moghadam et al. (2022), who stated that the inclusion of S1 data does not improve the performance of any learning model. This discrepancy may arise from different choices of machine learning algorithms and the significant influence of various types and combinations of environmental variables on the selection of important variables.
Spatial distributions of SOCS
Our study reveals that grassland soils located in wetlands, riverbanks, and forest edges exhibit high levels of SOCS (Fig. 6), which may be attributed to the high soil moisture content in this region. Previous studies have demonstrated a positive correlation between soil moisture content and SOCS (Cheng et al. 2006; Gao et al. 2007; Li et al. 2007), which is consistent with the findings of in the Aba grasslands (Yang et al. 2014). There are several possible reasons for this finding. Firstly, in the surface layer, optimal soil moisture content can influence the uptake and utilization of organic matter and other nutrients by plants (Yu et al. 2019). Secondly, aboveground vegetation and root biomass tend to increase in response to abundant soil moisture (Cong et al. 2016). Lastly, as soil moisture levels rise to optimal thresholds, the decomposition rates of surface litter and shallow-root fine roots accelerate, thereby facilitating the accumulation of SOCS. However, for the subsoil layer, under favorable thermal conditions, soil respiration rates were notably reduced by soil moisture content. Meanwhile, soil respiration decreased under too low or too high soil moisture. In regions typified by high-altitude meadows adjacent to wetlands, riverbanks, and forest boundaries, characterized by sustained high soil moisture levels, soil respiration rates exhibit comparatively slower kinetics compared to lowland grasslands. Consequently, this environment fosters a greater accumulation of deep SOCS (Li et al. 2018; Suh et al. 2009).
A recent study further found that decreased soil water content was the direct reason for SOC degradation due to the decline of carbon input from vegetation (Dong et al. 2021). Understanding the relationship between soil moisture content and SOCS had significant implications for land management and carbon sequestration strategies. Because it was difficult to understand SOCS in a short term, soil water content change (easier to measure than SOCS) would be an important indicator for predicting SOCS in the Zoige Plateau. Since the 1950s, due to intensive human disturbance (e.g., drainage) and climate change, the Zoige Plateau suffered from a significant loss of wetland (Wu et al. 2011; Xiang et al. 2009), which had significantly increased soil respiration and decreased SOCS (Bai et al. 2013). In terms of global climate change, conservation efforts targeting towards preserving and restoring wetland areas with high soil moisture content are necessary to preserve regional carbon sequestration service and carbon budget. Therefore, the newly developed SOCS product with a spatial resolution of 10 m has important implications for informed land management and ecological restoration.
Conclusion
In this study, we investigated the spatial and vertical distribution characteristics of SOCS in the Zoige Plateau using Sentinel-1 and Sentinel-2 combining field observations. Our results showed that SOC content had a significant vertical distribution and was generally higher than that of other areas due to high altitude, low temperature and soil microbial activities. The XGBoost algorithm integrating Sentinel-1 and Sentinel-2 images provided satisfactory modeling efficiency of 0.59 in SOCS, which was relatively higher compared to several other studies that used only single satellite image, highlighting the importance of model and satellite images in SOCS prediction. The predicted SOCS displayed a remarkable spatial heterogeneity, and newly developed SOCS map with a fine spatial resolution of 10 m would have important applications in land management, ecological restoration and protection in the Zoige Plateau.
Availability of data and materials
The data generated and analyzed during the present study are available from the corresponding author.
Abbreviations
- SOC:
-
Soil organic carbon
- SOCS:
-
Soil organic carbon stock
- S1:
-
Sentinel-1
- S2:
-
Sentinel-2
- XGBoost:
-
EXtreme Gradient Boosting
- RF:
-
Random Forest
- BRT:
-
Boosted Regression Tree
- NDVI:
-
Normalized Differnce Vegetation Index
- EVI:
-
Enhanced Vegetation Index
- RVI:
-
Ratio Vegetation Index
- DVI:
-
Difference Vegetation Index
- NGBDI:
-
Normalized Green–Blue Difference Index
- MSR:
-
Modified Red Edge Simple Ratio Index
- MSI:
-
Modified Soil-adjusted Vegetation Index
- VARI:
-
Visible Atmospherically Resistant Index
References
Bai J, Lu Q, Zhao Q, Wang J, Ouyang H (2013) Effects of alpine wetland landscapes on regional climate on the Zoige Plateau of China. Adv Meteorol 2013:972430. https://doi.org/10.1155/2013/972430
Bentéjac C, Csörgő A, Martínez-Muñoz G (2021) A comparative analysis of gradient boosting algorithms. Artif Intell Rev 54:1937–1967
Cai Q, Guo Z, Hu Q, Wu G (2013) Vertical distribution of soil organic carbon and carbon storage under different hydrologic conditions in Zoigê alpine Kobresia meadows wetland. Scientia Silvae Sinicae 49:9–16
Cao B, Ling C (2021) Estimation of aboveground biomass and soil organic carbon density of Zoige Alpine Wetland based on GF-1 remote sensing data. Remote Sens Technol Appl 36:229–236
Castaldi F, Chabrillat S, Don A, van Wesemael B (2019a) Soil organic carbon mapping using LUCAS topsoil database and Sentinel-2 data: an approach to reduce soil moisture and crop residue effects. Remote Sensing 11:2121
Castaldi F, Hueni A, Chabrillat S et al (2019b) Evaluating the capability of the Sentinel 2 data for soil organic carbon prediction in croplands. ISPRS J Photogramm Remote Sens 147:267–282
Chen T, Guestrin C (2016) Xgboost: A scalable tree boosting system. In: Chen T (ed) Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. University of Washington, New York, p 785
Chen H, Yang G, Peng CH et al (2014) The carbon stock of alpine peatlands on the Qinghai-Tibetan Plateau during the Holocene and their future fate. Quat Sci Rev 95:151–158
Chen M, Liu Q, Chen S et al (2019) XGBoost-based algorithm interpretation and application on post-fault transient stability status prediction of power system. IEEE Access 7:13149–13158
Cheng J, Wan H, Hu X, Zhao Y (2006) Accumulation and decomposition of litter in the semiarid enclosed grassland. Acta Ecol Sin 26:1207–1212
Cheng J, Cheng J, Yang X, Liu W, Chen F (2012) Spatial distribution of carbon density in grassland vegetation of the Loess Plateau of China. Acta Ecol Sin 32:226–237
Cong J, Wang X, Liu X, Zhang Y (2016) The distribution variation and key influencing factors of soil organic carbon of natural deciduous broadleaf forests along the latitudinal gradient. Acta Ecol Sin 36:333–339
Dash PK, Bhattacharyya P, Roy KS, Neogi S, Nayak AK (2019) Environmental constraints’ sensitivity of soil organic carbon decomposition to temperature, management practices and climate change. Ecol Indic 107:105644
Demir S, Şahin EK (2022) Liquefaction prediction with robust machine learning algorithms (SVM, RF, and XGBoost) supported by genetic algorithm-based feature selection and parameter optimization from the perspective of data processing. Environ Earth Sci 81:459
Dong L, Li J, Chen S et al (2021) Changes in soil organic carbon content and their causes during the degradation of alpine meadows in Zoige Wetland. Chin J Plant Ecol 45:507–515
Fan H, Zhao W, Daryanto S et al (2018) Vertical distributions of soil organic carbon and its influencing factors under different land use types in the desert riparian zone of downstream Heihe River basin, China. J Geophys Res Atmos 123:7741–7753
Feida S, Hui L, Ye H (2016) Tge soil organic carbon storange and its spatial characteristics in an Aloine degraded grassland of Zoige, southwest China. Chin J Grassl 38:78–84
Fushiki T (2011) Estimation of prediction error by using K-fold cross-validation. Stat Comput 21:137–146
Gao J, Ou Y, Zhang F, Zhang C (2007) Characteristics of spatial distribution of soil organic carbon in Zoige wetland. Ecol Environ 16:1723–1727
Gebauer A, Gómez VMB, Liess M (2019) Optimisation in machine learning: an application to topsoil organic stocks prediction in a dry forest ecosystem. Geoderma 354:113846
Geng J, Tan Q, Lv J, Fang H (2024) Assessing spatial variations in soil organic carbon and C:N ratio in Northeast China’s black soil region: insights from Landsat-9 satellite and crop growth information. Soil Tillage Res 235:105897
Ghatasheh N, Altaharwa I, Aldebei K (2022) Modified genetic algorithm for feature selection and hyper parameter optimization: case of XGBoost in spam prediction. IEEE Access 10:84365–84383
Gholizadeh A, Zizala D, Saberioon M, Boruvka L (2018a) Soil organic carbon and texture retrieving and mapping using proximal, airborne and Sentinel-2 spectral imaging. Remote Sens Environ 218:89–103
Gholizadeh A, Žižala D, Saberioon M, Borůvka L (2018b) Soil organic carbon and texture retrieving and mapping using proximal, airborne and Sentinel-2 spectral imaging. Remote Sens Environ 218:89–103
Gomes LC, Faria RM, de Souza E, Veloso GV, Schaefer CE, Fernandes Filho EI (2019) Modelling and mapping soil organic carbon stocks in Brazil. Geoderma 340:337–350
Haralick RM (1979) Statistical and structural approaches to texture. Proc IEEE 67:786–804
Hengl T, de Jesus JM, Heuvelink GBM et al (2017) SoilGrids250m: Global gridded soil information based on machine learning. PLoS One 12:e0169748
Huang T, Gao B, Christie P, Ju X (2013) Net global warming potential and greenhouse gas intensity in a double-cropping cereal rotation as affected by nitrogen and straw management. Biogeosciences 10(12):7897–7911
Jin F, Yang H, Zhao QG (2017) Research progress of soil organic carbon storage and its influencing factors. Soils 32:11–17
Jin X, Qiang H, Zhao L et al (2020) SPEI-based analysis of spatio-temporal variation characteristics for annual and seasonal drought in the Zoige Wetland, Southwest China from 1961 to 2016. Theoret Appl Climatol 139:711–725
Knicker H, Müller P, Hilscher A (2007) How useful is chemical oxidation with dichromate for the determination of “black carbon” in fire-affected soils? Geoderma 142:178–196
Lal R (2004) Soil carbon sequestration impacts on global climate change and food security. Science 304:1623–1627
Lei XD (2019) Applications of machine learning algorithms in forest growth and yield prediction. J Beijing For Univ 41:23–36
Li M, Dong Y, Geng Y, Qi Y (2004) Analyses of the correlation between the fluxes of CO2 and the distribution of C & N in grassland soils. Environ Sci 25:7–11
Li JH, Hou YL, Zhang SX, Li WJ, Xu DH, Knops JMH, Shi XM (2018) Fertilization with nitrogen and/or phosphorus lowers soil organic carbon sequestration in alpine meadows. Land Degrad Dev 29:1634–1641
Li ZW, Gao P, Hu XY, Yi YJ, Pan BZ, You YC (2020) Coupled impact of decadal precipitation and evapotranspiration on peatland degradation in the Zoige basin, China. Phys Geogr 41:145–168
Li H, Wu Y, Liu S et al (2022) Decipher soil organic carbon dynamics and driving forces across China using machine learning. Glob Change Biol 28:3394–3410
Li L, Xiao HA, Wu JS (2007) Decomposition and transformations of organic substrates in upland and paddy soils in red earth region. Acta Pedol Sin 44:669–674
Ma K, Zhang Y, Tang S, Liu J (2016) Spatial distribution of soil organic carbon in the Zoige alpine wetland, northeastern Qinghai-Tibet plateau. Catena 144:102–108
Ma Q (2013) Ecosystem carbon storage in Zoige alpine marsh of Southwest China. Chinese Academy of Forestry, Beijing
Mahmoudzadeh H, Matinfar HR, Taghizadeh-Mehrjardi R, Kerry R (2020) Spatial prediction of soil organic carbon using machine learning techniques in western Iran. Geoderma Reg 21:e00260
Marchant B, Villanneau E, Arrouays D, Saby N, Rawlins B (2015) Quantifying and mapping topsoil inorganic carbon concentrations and stocks: approaches tested in France. Soil Use Manag 31:29–38
Mayr A, Binder H, Gefeller O, Schmid M (2014) The evolution of boosting algorithms. Methods Inf Med 53:419–427
Plank S (2014) Rapid damage assessment by means of multi-temporal SAR—a comprehensive review and outlook to Sentinel-1. Remote Sensing 6:4870–4906
Qiu P, Wu N, Luo P, Wang Z, Li M (2009) Analysis of dynamics and driving factors of wetland landscape in Zoige, Eastern Qinghai-Tibetan Plateau. J Mt Sci 6:42–55
Ren Y, Li X, Yang X, Xu H (2021) Development of a dual-attention U-Net model for sea ice and open water classification on SAR images. IEEE Geosci Remote Sens Lett 19:1–5
Rentschler T, Gries P, Behrens T et al (2019) Comparison of catchment scale 3D and 2.5D modelling of soil organic carbon stocks in Jiangxi Province, PR China. PLoS ONE 14:e0220881
Rouse Jr JW, Haas RH, Deering DW, Schell JA, Harlan JC (1974) Monitoring the vernal advancement and retrogradation (green wave effect) of natural vegetation. NASA Technical Reports Server
Shafizadeh-Moghadam H, Minaei F, Talebi-khiyavi H, Xu T, Homaee M (2022) Synergetic use of multi-temporal Sentinel-1, Sentinel-2, NDVI, and topographic factors for estimating soil organic carbon. Catena 212:106077
Singh G, Panda RK (2011) Daily sediment yield modeling with artificial neural network using 10-fold cross validation method: a small agricultural watershed, Kapgari, India. Int J Earth Sci Eng 4:443–450
Six J, Paustian K (2014) Aggregate-associated soil organic matter as an ecosystem property and a measurement tool. Soil Biol Biochem 68:A4–A9
Suh S, Lee E, Lee J (2009) Temperature and moisture sensitivities of CO2 efflux from lowland and alpine meadow soils. J Plant Ecol 2:225–231
Tang X (2013) Estimation of forest aboveground biomass by integrating ICESat/GLAS waveform and TM data. University of Chinese Academy of Sciences Beijing, Beijing
Tang X, Xia M, Pérez-Cruzado C, Guan F, Fan S (2017) Spatial distribution of soil organic carbon stock in Moso bamboo forests in subtropical China. Sci Rep 7:42640
Vaudour E, Bel L, Gilliot JM et al (2013) Potential of SPOT multispectral satellite images for mapping topsoil organic carbon content over peri-urban croplands. Soil Sci Soc Am J 77:2122–2139
Venter ZS, Barton DN, Chakraborty T, Simensen T, Singh G (2022) Global 10 m land use land cover datasets: a comparison of Dynamic World, World Cover and Esri Land Cover. Remote Sensing 14:4101
Wang R, Lu S, Li Q (2019a) Multi-criteria comprehensive study on predictive algorithm of hourly heating energy consumption for residential buildings. Sustain Cities Soc 49:101623
Wang X, Li Y, Gong X et al (2019b) Storage, pattern and driving factors of soil organic carbon in an ecologically fragile zone of northern China. Geoderma 343:155–165
Wang Q, Le Noë J, Li QQ et al (2023) Incorporating agricultural practices in digital mapping improves prediction of cropland soil organic carbon content: the case of the Tuojiang River Basin. J Environ Manage 330:117203
Wei L, Tian S, Lu Q et al (2023) Estimating soil organic carbon content of multiple soil horizons in the middle and upper reaches of the Heihe River Basin. Catena 234:107574
Wu X, Guo J, Yang X, Tian X (2011) Soil organic carbon storage and profile inventory in the different vegetation types of Luya Mountain. Acta Ecol Sin 31:3009–3019
Xiang S, Guo R, Wu N, Sun S (2009) Current status and future prospects of Zoige Marsh in Eastern Qinghai-Tibet Plateau. Ecol Eng 35:553–562
Yang R-M, Guo W-W (2019) Modelling of soil organic carbon and bulk density in invaded coastal wetlands using Sentinel-1 imagery. Int J Appl Earth Obs Geoinf 82:101906
Yang S, Li T, Gan Y (2014) Response of soil organic carbon storage in alpine meadow in Aba pastoral areas to different ways of using and degree. Chin J Grassl 6:12–17
Ye CY, Li L, Zhao RY et al (2023) Soil organic carbon and its stability after vegetation restoration in Zoige grassland, eastern Qinghai-Tibet Plateau. Restor Ecol 31:e13896
Yu H, Zha T, Zhang X, Ma L (2019) Vertical distribution and influencing factors of soil organic carbon in the Loess Plateau, China. Sci Total Environ 693:133632
Yu X, Wang YH, Wu LF et al (2020) Comparison of support vector regression and extreme gradient boosting for decomposition-based data-driven 10-day streamflow forecasting. J Hydrol 582:124293
Zhang B, Zhang Y, Jiang X (2022) Feature selection for global tropospheric ozone prediction based on the BO-XGBoost-RFE algorithm. Sci Rep 12:9244
Zheng H, Yuan J, Chen L (2017) Short-term load forecasting using EMD-LSTM neural networks with a Xgboost algorithm for feature importance evaluation. Energies 10:1168
Zhou T, Geng YJ, Chen J et al (2020) High-resolution digital mapping of soil organic carbon and soil total nitrogen using DEM derivatives, Sentinel-1 and Sentinel-2 data based on machine learning algorithms. Sci Total Environ 729:138244
Zhou T, Geng YJ, Ji C et al (2021) Prediction of soil organic carbon and the C:N ratio on a national scale using machine learning and satellite data: a comparison between Sentinel-2, Sentinel-3 and Landsat-8 images. Sci Total Environ 755:142661
Zhou T, Geng YJ, Lv WH et al (2023a) Effects of optical and radar satellite observations within Google Earth Engine on soil organic carbon prediction models in Spain. J Environ Manage 338:117810
Zhou T, Hou YT, Yang ZH et al (2023b) Reducing spatial resolution increased net primary productivity prediction of terrestrial ecosystems: a Random Forest approach. Sci Total Environ 897:165134
