Fuzzy evaluation and obstacle factors of urban ecological health changes in the Wei River Basin, northwest China



Urban ecological health is crucial for the long-term sustainable development of watershed. Accurately evaluating the health level of the ecological environment helps to develop reasonable strategies for ecological environment restoration and resource management. This paper constructed a comprehensive evaluation index system based on the Pressure-State-Response (PSR) framework and evaluated the ecological health of eleven administrative regions in the Wei River Basin (WRB), northwest China in 1980, 2000, and 2020 using an evaluation model established by fuzzy mathematics. Further, obstacle degrees were used to quantify the contribution of pressure, state, and response modules, as well as individual indicators to ecological health.


The comprehensive evaluation system constructed based on the PSR framework could effectively reflect the ecological health conditions of different regions in the WRB. During the study period, the ecological health went through a process of first deterioration and then improvement. By 2020, the ecological health of seven administrative regions reached healthy levels. The state module was the main obstacle module of the PSR framework to the ecological health of the most regions. The population density (P1), patch density of construction land (S5), comprehensive elasticity index (S8), soil erosion index (R1), and per capital GDP (R3) were the most crucial individual indicators affecting the ecological health. For different cities, the main obstacle factors varied. In economically developed cities, the limiting effect of P1 was more significant, while in economically underdeveloped cities, the limiting effect of R3 was stronger.


In response to the special natural environment and socio-economic conditions of arid and semi-arid areas in the WRB, an ecological health evaluation index system suitable for the characteristics of the basin was constructed. The results indicated that, to improve the levels of urban ecological health, it is necessary to restore the natural ecological environment and control population size while accelerating economic construction. Our results can provide scientific support for the ecological health evaluation and protection of the WRB and even the arid and semi-arid areas in northwest China.


Ecological environment is the material foundation for human survival and development. In recent decades, a series of global environmental problems such as pollution, resource waste, and ecological damage have received widespread attention (Ma et al. 2017; Marques et al. 2019). Many factors like climate change, population growth, and economic development, may lead to these problems (Wang et al. 2014). For example, from 1985 to 2015, the average annual expansion of global urban area was 9687 km2, and it was expected to continue to grow in the future (Liu et al. 2020a, b). Urban construction at the cost of sacrificing the environment poses a threat to habitat quality and biodiversity (Grimm et al. 2008). In China, with the development of society and technological progress, the scope and intensity of human impact on the natural environment are constantly increasing, and the resulting regional ecological and environmental problems are also expanding and intensifying (Ouyang et al. 2000). Therefore, understanding the ecological health status and its main constraints is of great significance for effectively coordinating population, resources, environment, and economy under resource constraints, and seeking the optimal comprehensive benefits of ecology, economy, and society (Bryan et al. 2018).

At present, the concept of ecological health has not been fully unified (Tang et al. 2015), but a healthy ecosystem must possess the characteristics as reasonable structure, strong vitality, low external pressure, complete ecological functions, good response to nature and society, stable system, and sustainable state (Peng et al. 2015; Rapport et al. 1999). When facing different human expectations, the assessment results of the same ecosystem may be different. Whether the ecosystem is healthy or not totally depends on the standard value, but "health" is only a relative concept, and there are certain difficulties in defining the standard value (Han and Cao 2021; Shamseldin and Jacquin 2009). Therefore, ecological health assessment is always treated as a fuzzy mathematics problems (Li et al. 2017). The evaluation model established using fuzzy mathematics method is more in line with the actual situation than traditional methods.

Evaluating the health status of the ecological environment requires comprehensive consideration of the coordination between resources, environment, and economy (Jia et al. 2018). At present, assessment index system method was widely used to evaluate the ecological health conditions, because it can comprehensively take into multiple factors and objectively reflect the overall situation of the evaluated watershed (Fan and Fang 2020). There are many frameworks for constructing an evaluation index system, such as the structure–function framework (Ogden et al. 2019), pressure-state-response (PSR) (Jiao et al. 2023) and its extended frameworks, driving force-pressure-state-impact-response (DPSIR) (Chen 2022), and ecosystem vigor-organization-resilience-services (Peng et al. 2015). Among various frameworks, PSR framework is the most comprehensive, effective, and highly recognized framework model for studying environmental issues nowadays (Hazbavi et al. 2019). The application of the PSR model can deeply reflect the interaction between natural ecosystems and socio-economic systems, help people better understand the impact of human activities on the environment and develop effective environmental protection measures (Wilkerson et al. 2018). The focus of the evaluation may vary due to different purposes. For example, it can be used to evaluate the environmental impact of an industrial area, identify pressure sources, environmental status, and response measures, to develop effective environmental protection measures (Chen et al. 2020; Gu et al. 2022). It can also be used to forecast the potential environmental threats to help avoid the impact of disasters on the environment (Sun et al. 2022). What’s more, the PSR framework also has good applications at different spatial scales. The existing ecological health assessment research has been conducted at the national (Zhang et al. 2019), provincial (Fan and Fang 2020), municipal (Lai et al. 2022; Li et al. 2022), and regional levels (Sun et al. 2016).

The Wei River Basin (WRB) is an important development zone in the northwest China, playing an important strategic role at the regional and national levels (Song et al. 2015). Since the 1950s, with the rapid development of the economy and society, the urbanization process has accelerated, and the ecological environment has been seriously threatened. The WRB has gradually become an ecologically sensitive area, with frequent problems such as water resource shortage, water quality deterioration, and severe soil erosion (Li et al. 2021). In existing studies, the evaluation of ecological health in the WRB has mostly focused on water pollution (Zhao et al. 2022), or ecological risk assessment at the basin scale based on comprehensive hydrological conditions, natural habitats, biological structures, landscape trends, etc. (Yang et al. 2020). However, the WRB contains many administrative regions, each with differences in geographical location, natural conditions, socio-economic development, population, and other aspects. However, there is currently a relative lack of research on comprehensive evaluation of ecological health in different administrative regions of WRB.

In view of this, the aim of the study is to establish a comprehensive evaluation index system to evaluate the ecological health of urban agglomerations in the WRB. The specific objectives are to: (1) construct a comprehensive evaluation index system that includes population, land use, landscape pattern, ecological service function, natural and socio-economic factors based on the PSR framework in the WRB; (2) establish an evaluation model using fuzzy mathematics, and determine the ecological health status of eleven cities in 1980, 2000, and 2020 according to the principle of maximum membership degree; (3) quantify the contribution rate of different indicators to the ecological health using the obstacle degree method; and (4) discuss the impact of various indicators on ecological health and propose policy suggestions. The research results would provide reference for ecological restoration and future efficient watershed management.

Study area and data

Study area

The WRB is in the southeastern region of the Loess Plateau of China (106°18′–110°37′E, 33°42′–37°20′N), with the drainage area of approximately 13.5 × 104 km2. The Wei River rises in the Niaoshu Mountain of in Dingxi, Gansu Province, with the total length of 818 km, and finally merges into the Yellow River in Tongguan County, Shaanxi Province. There are many tributaries of the Wei River, feathered and asymmetrically distributed on the north and south bank, with larger tributaries concentrated on the north bank. The upper reaches are mainly loess hilly areas, accounting for over 70% of the area; The northern part of the middle and lower reaches is the Loess Plateau in northern Shaanxi, the central part is the valley alluvial plain area, Guanzhong Plain, and the southern part is the earth rock mountain area of the Qinling Mountains (Zhang et al. 2022). WRB is continental monsoon climate, belonging to the transitional zone between arid and semi-humid regions, with an average annual temperature of 9.8 °C and precipitation of 373–1138 mm. The population distribution in the Guanzhong area is the densest, accounting for over 65% of the total population in the basin, while the population distribution is sparse in the Qinling Mountains and Loess Plateau areas (Ren et al. 2016).

As the largest tributary of the Yellow River, the Wei River flows from west to east through three provinces (districts) of Gansu, Ningxia, and Shaanxi, including 10 regions and 84 counties. The WRB is one of the important water resource economic zones in China, covering major urban and rural areas in the Guanzhong region (Gai et al. 2019). This study selected eleven administrative regions in the WRB, namely Dingxi (DX), Tianshui (TS), Pingliang (PL), Qingyang (QY), Guyuan (GY), Baoji (BJ), Xi’an (XA), Xianyang (XY), Tongchuan (TC), Weinan (WN), and Yan’an (YA) (Fig. 1), to conduct ecological health assessment and obstacle factor analysis. Objectively understanding the changes and influencing factors of urban ecological health can provide a reference for future regional development. It is worth noting that the research object of this study is various administrative regions, rather than referring to "urban" areas with a certain scale and population density, where economic, cultural, political and other activities are concentrated. The administrative region is a second level unit in the national administrative management system, established mainly for the convenience of administrative management and the provision of public services, including urban, rural, and other types of areas.

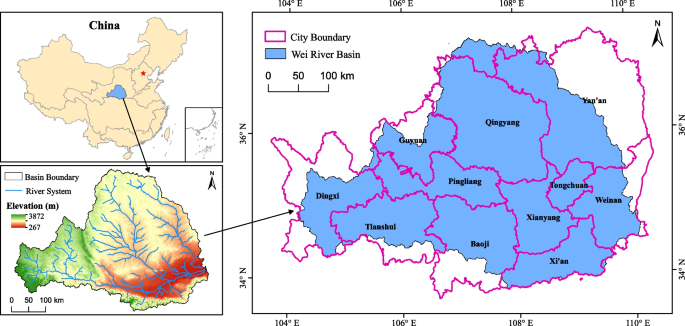

Fig. 1
figure 1

Geographical location and urban agglomeration distribution of the Wei River Basin

Data sources

The datasets used for ecological health assessment included meteorological data, land use data, environmental data, and social economic data. The meteorological data, including annual average precipitation and temperature), and the spatial distribution of land use/land cover, were sourced from Resource and Environmental Science Data Center, Chinese Academy of Sciences (, with the resolution of 1 km × 1 km. The spatiotemporal resolution of meteorological data and land use datasets may not be sufficient to capture subtle changes within the study area. For example, rough resolution may not accurately reflect the dynamics of urban heat island effects or local land cover changes. Therefore, when conducting refined research, observation data from local meteorological stations or higher resolution land use datasets should be used to match the local actual situation. This study is based on administrative regions, so the accuracy of the data is required to be low. Meteorological data was used to calculate indicators such as biological first potential productivity and rainfall erosivity. Land use data was basic data to calculate the land pressures, the organization, resilience, service functions, and natural response of the ecosystem. Environmental data are composed of soil and topographical data. Soil data include sand, silt, clay, and soil organic matter content (%), which are from Harmonized World Soil Database (HWSD), with the spatial resolution of 1 km × 1 km. Soil data were acquired to calculate the soil erosion amount. Topographical data here referred to the digital elevation model (DEM) of the study area, which was downloaded from Geospatial Data Cloud Platform of Chinese Academy of Sciences (, with the resolution of 30 m × 30 m, and it was used for slope analysis. Social economic data included population density and per capital GDP of each city, deriving from statistical bulletins of national economy and social development of provinces and cities (, which reflected the population pressure and social response of the research area during the study period. The boundary of administrative division of cities was from the Resource and Environmental Science and Data Center of Chinese Academy of Sciences (


Evaluation index system establishment

PSR framework construction

The PSR framework was developed by the Organization for Economic Cooperation and Development (OECD) and the United Nations Environment Programme (UNEP) in the 1980s and 1990s to study environmental issues (Walz 2000). It has a very clear causal relationship, including indicators at three levels: pressure, state, and response. Pressure indicators reflect the pressure faced by the ecological environment, such as pollution, resource consumption, land use changes, etc. State indicators indicate the current situation of the ecological environment and reflect the state of the ecosystem under the comprehensive influence of various natural, human, and other factors. In addition to selecting the three aspects of vigor, organization, resilience proposed by Costanza et al. (1998), this study also added an ecological service function to describe the state of the ecosystem together. Response indicators reflect the response of ecological environment to pressures. Human society also responds to environmental changes through environmental, economic, and management strategies to improve environmental quality or prevent environmental degradation, including policy, legal, technological, and socio-economic factors (Wang et al. 2021). Based on the principles of systematicity, independence, differentiation, and quantifiability (Hazbavi et al. 2018), this study selected 11 indicators and constructed an adaptive PSR evaluation index system (Table 1). The indicator type indicates whether the selected indicator belongs to a positive indicator or negative indicator, represented by “ + ” and “−” respectively.

Table 1 PSR framework for urban ecological health evaluation of Wei River Basin

Acquisition of indicators

In this study, P1, P2, R2, and R3 can be directly obtained by definition or data products, respectively. Landscape pattern indices (S2, S3, S4) and relevant indicators of construction land (S5, S6, S7) were calculated using land use distribution maps in Fragstats 4.2 software. Euclidean nearest neighbor is a commonly used concept in spatial analysis and geographic information systems, used to determine the nearest neighbor point of a given point in Euclidean space. It is widely used in environmental science, land use planning, and infrastructure layout. Perimeter-area fractal dimension is an indicator used to describe the complexity of the shape of a landscape or geographic object. It quantifies the fractal characteristics of an object by analyzing the relationship between its perimeter and area. A higher value usually indicates that the landscape has a more complex edge structure, with a larger proportion between edges and area, which may indicate more edge effects and more complex ecological processes in the landscape (Jia et al. 2019; Jahanmiri and Parker 2022). R1 was calculated based on the revised universal soil loss equation (RUSLE). Chinese scholars have conducted extensive research on the revision of USLE factor calculation methods and the use of equations for soil erosion monitoring and prediction (Chen et al. 2004). In this study, the revised parameter calculation methods were used to calculate various indicators and obtained convincing results (Wu et al. 2023). From slight to severe soil erosion, the soil erosion index was endowed 10, 8, 6, 4, 2, and 0, respectively.

NPP (S1) is constrained by several environmental and climatic factors, with temperature and precipitation having the greatest impact. This study adopted the Miami model first proposed by Lieth in 1971 to calculate NPP (Sun et al. 2010).

$${NPP}_{R}=3000\times (1-{e}^{-0.00065R})$$

where NPPt and NPPR are the NPP values calculated according to temperature and rainfall, the unit is g/(m2∙yr); t is the annual temperature (°C); R is the annual rainfall (mm). The NPP value is the minimum of NPPt and NPPR.

The comprehensive elasticity index (S5) of ecosystems can usually be determined by changes in vegetation types. It is calculated as follows:

$$S5={D}_{i}\sum {S}_{i}{R}_{i}$$

where Si is the area of ith land use type; Ri is the comprehensive elasticity index of land use i, with the farmland, forestland, grassland, water area, construction land, and unused land of 0.5, 0.9, 0.7, 0.9, 0.4, and 0, respectively. Di is the diversity index.

As for S8, it is equal to the value corresponding to the ability of ecosystems to maintain the natural environment on which humans rely for survival and provide various necessities of life. Economists and ecologists have conducted many studies on the estimation of the value of ecosystem services. In this study, we applied the method proposed by Xie et al. (2008) to estimate the value of S8. It was an ecosystem service value evaluation system based on expert knowledge that can more accurately reflect the production-consumption-value realization process of ecosystem services in China. In this method, ecosystem services mainly include supply services, regulation services, support services, cultural services, etc. (Xie et al. 2008). The average ecosystem service value of farmland, forestland, grassland, water area, construction land, and unused land per unit area were 1.22, 8.17, 2.66, 15.8, 1.15, and 0.22, respectively. The total ecosystem service value was equal to the sum of the values of different land use types.

Determination of evaluation index weights

Indicator weight refers to the importance relationship of each indicator under the same objective constraint. The entropy method was applied to assign weights to ecological health evaluation indicators, and the main steps are as follows:

(1) Data standardization processing. Due to differences in the dimensions, magnitude, and positive or negative orientations of each indicator, it is necessary to standardize the initial data. The standardization method is as follows:

For positive indicators:

$$X_{{{\text{ij}}}}^{\prime} = \frac{{X_{ij} - \min X_{j} }}{{\max X_{j} - \min X_{j} }}$$

For negative indicators:

$$X_{{{\text{ij}}}}^{\prime} = \frac{{\max X_{j} - X_{ij} }}{{\max X_{j} - \min X_{j} }}$$

(2) Calculate the proportion of the jth indicator value in the ith year:

$$Y_{{{\text{ij}}}} = \frac{{X_{ij}^{\prime} }}{{\sum\limits_{i = 1}^{m} {X_{ij}^{\prime} } }}$$

(3) Calculation of indicator information entropy:

$${\text{e}}_{j} = - k\sum\limits_{i = 1}^{m} {\left( {Y_{ij} \times \ln Y_{ij} } \right)}$$

In the formula, \({\text{k}} = \frac{1}{\ln m}\), then \(0 \le {\text{e}}_{j} \le 1\), when Yij = 0, let \(Y_{{{\text{ij}}}} \times \ln Y_{ij} = 0\).

(4) Calculation of information entropy redundancy:

$${\text{d}}_{j} = 1 - e_{j}$$

(5) Determination of indicator weights:

$$\omega_{{\text{i}}} = \frac{{d_{j} }}{{\sum\limits_{j = m}^{n} {d_{j} } }}$$

In the formula, \(X_{{{\text{ij}}}}{\prime}\) and \(X_{{{\text{ij}}}}\) are the standardized and original values of the jth single indicator in the ith year, respectively, while \(\max X_{j}\) and \(\min X_{j}\) are the maximum and minimum values of the jth single indicator in all years. m is the number of evaluation years, and n is the number of indicators. The weight results of each indicator determined through AHP in this study were shown in Table S1. P2 of the the pressure module, S2, S4, and S8 of the state module, and R3 of the response module had higher weights, indicating that these indicators have a greater impact on ecological health.

Urban ecological health evaluation model

This study used the evaluation model based on fuzzy mathematical method to determine the ecological health levels of each city. The model quantifies some unclear and non-quantitative factors by applying the principle of fuzzy relationship synthesis, and uses the membership degree in fuzzy mathematics to describe the evaluation level (Zahabi and Kaber 2019). It provides a systematic for a similar representation of complex or poorly defined problems using linguistic variables, in which the transition from one member to another is gradual rather than sudden, and is consistent with human reasoning processes. Using fuzzy models for soft classification can make a single indicator value belong to multiple health levels with different membership degrees, thus better reflecting the actual characteristics of the indicator and comprehensive assessment results (Cheng et al. 2022). In this study, ecological health level is divided into five classes, namely “Morbidity” (I), “Unhealthy” (II), “Sub-healthy” (III), “Healthy” (IV), and “Very healthy” (V). The ecological health evaluation model developed by fuzzy mathematical method is as follows:

$$H=W\times R$$

where H is the diagnosis result of ecological health; W is the weight matrix of pressure, state, and response to ecological health, \(W=({\omega }_{1}, {\omega }_{2}, {\omega }_{3})\) ; R is the membership matrix of each ecological health assessment element to health standards at all levels:

$$R=\left[\begin{array}{ccc}{R}_{11}& {R}_{12}& {R}_{13}\\ {R}_{21}& {R}_{22}& {R}_{23}\\ {R}_{31}& {R}_{32}& {R}_{33}\end{array} \begin{array}{cc}{R}_{14}& {R}_{15}\\ {R}_{24}& {R}_{25}\\ {R}_{34}& {R}_{35}\end{array}\right]$$

where \(R_{{{\text{ij}}}}\) is the degree of membership of the ith element to the jth level standard:

$${R}_{ij}=\left(\begin{array}{cc}{\omega }_{i1}& {\omega }_{i2} \cdots {\omega }_{ik}\end{array}\right) \left[\begin{array}{c}{r}_{1j}\\ {r}_{\begin{array}{c}2j\\ \vdots \end{array}}\\ {r}_{kj}\end{array}\right]$$

where k is the number of indicators included in each rating indicator; ωik is the weight of the kth indicator in the ith element; rkj is the relative membership degree of the kth indicator to the jth health level standard. In fuzzy sets, relative membership is usually used to determine the health status of ecosystems.

Relative membership is to compare the advantages and disadvantages of different decisions in the limited universe and has nothing to do with decisions outside the universe. It can reduce or even eliminate the defects of subjective arbitrariness (Chen and Zhao 1993). In this study, we follow the principle of maximum membership to judge the ecological health levels. For positive indicators, the calculation formula is as follows (taking the ith indicator Xi as an example, where Sij is the jth level health standards for the ith indicator), while the calculation for negative indicators is similar, with only the sign is reversed.

(1) when the ith indicator Xi is less than its corresponding first level standard value (Morbidity), its relative membership degree to “morbidity” is 1, while to other health levels is 0. That is, when Xi < Sij:

$${r}_{i,1}=1, {r}_{i,2}={r}_{i,3}={r}_{i,4}={r}_{i,5}=0$$

(2) when the ith indicator Xi is between its corresponding j level and j + 1 level standard values, its relative membership degree to the j-level health grade is \(1-\frac{{X}_{i}-{S}_{i,j}}{{X}_{i}+{S}_{i,j}}\), to the j + 1 level health level is \(\frac{{X}_{i}-{S}_{i,j}}{{X}_{i}+{S}_{i,j}}\), and to other health levels is 0. That is, when \({S}_{i,j}\le {X}_{i}\le {S}_{i, j+1}\):

$${r}_{i,j}=\frac{{X}_{i}-{S}_{i,j}}{{S}_{i,j+1}-{S}_{i,j}} , {r}_{i,j}=1-{r}_{i,j+1} , j=1, \text{2,3},4$$

(3) when the ith indicator Xi is greater than its corresponding fifth level (very healthy) standard value, its membership degree to the fifth level health level is 1, while to other health levels is 0. That is, when Xi > Sij:

$${r}_{i,5}=1, {r}_{i,1}={r}_{i,2}={r}_{i,3}={r}_{i,4}=0$$

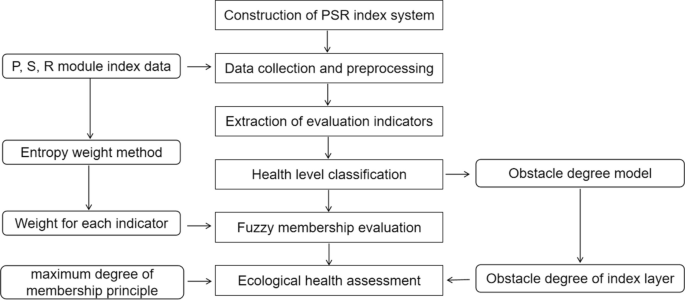

The flowchart of research methodology to evaluate the ecological health status of administrative regions is shown in Fig. 2. It includes the following steps: assessment class set, criterion set, weights set, membership function, fuzzy combination, fuzzy relation matrix and fuzzy evaluation matrix.

Fig. 2
figure 2

Flowchart of research methodology to evaluate the ecological health status of the WRB based on PSR framework

Evaluation criteria for indicators

To conduct comprehensive quantitative analysis and evaluation of ecological health, it is necessary to establish comparable quantitative indicators for evaluating the health of indicator factors and determine the threshold range of the indicators. The methods for determining the threshold range of indicators are not unified (Jakobsson et al. 2021). Some indicators are based on relevant national or international standards, such as soil erosion classification standards, while others are classified using sorting and statistical methods or natural breakpoint method in Arcgis10.2 software. The results of quantifying and grading various indicators based on the actual situation of the WRB are shown in Table S2.

Diagnosis of the obstacle factors

Ecological health is a complex issue, and the degree of impact of various factors on “health” varies. Obstacle analysis method is a technique used to identify and quantify the main obstacles that affect the achievement of goals in a multi-indicator comprehensive evaluation system. This method reveals which indicators have the greatest impact on the overall evaluation results by calculating the obstacles of each evaluation indicator, thereby providing decision-makers with directions for improvement measures. To determine the main obstacle factors affecting ecological health, three indicators, namely factor contribution degree (F), indicator deviation degree (I), and obstacle degree (h, H), were used to diagnose, and analyze the obstacles to ecological health (Yao et al. 2015), which provides reference for efficient environmental management (Zhang et al. 2019).

$${h}_{j}=\frac{{I}_{j}\times {F}_{j}}{\sum_{j=1}^{n}({F}_{j}\times {I}_{j})}\times 100\%$$
$${H}_{j}=\sum {h}_{ij}$$

where \(X_{{{\text{ij}}}}^{\prime }\) represents the standardized values of individual indicator i under each module j; Ij represents the gap between each individual indicator and the development goals, i.e. the difference between the standardized values of each individual indicator and 100%; Fj represents the degree of impact of each individual indicator on the ecological health, that is, the weight of each individual indicator on the overall goal; h and H represent the magnitude of the impact of each individual indicator and each assessment module (P, S, R) on ecological health, respectively, which are the goals and results of diagnosing ecological health barriers.

The standardized values of individual indicator Xij was calculated as follows to eliminate the differences in units and magnitudes of individual indicators (Liu and Hao 2016):

For positive indicators:


For negative indicators:


where Xij represents the original values of individual indicator i under j module; maxXj and minXj represent the maximum and minimum individual indicator value of the ith indicator. The increase of positive indicators or the decrease of inverse indicators will promote the improvement of ecological health, while the decrease of positive indicators or the increase of inverse indicators will reduce the ecological health (Fan and Fang 2020).


Evaluation grades for the pressure, state, and response

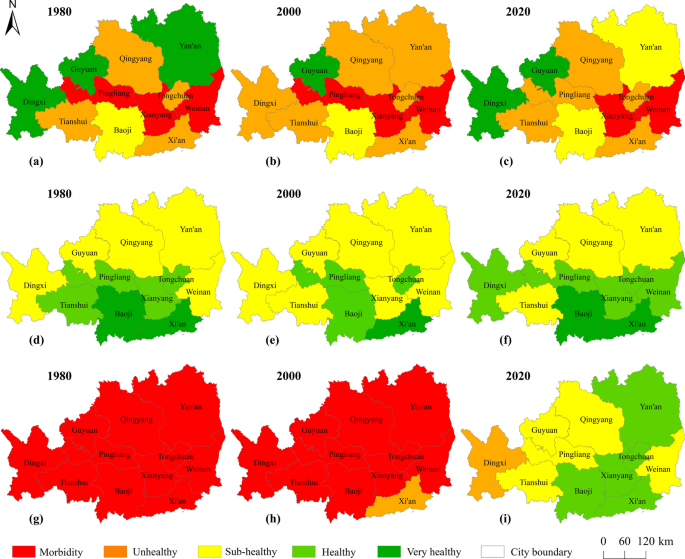

Figure 3 depicted health levels of pressure, state, and response modules of different cities in 1980, 2000, and 2020. For pressure module, it showed that cities in the south and east of the WRB faced greater pressure than those in the north and west (Fig. 3a–c). In 1980 and 2020, except for DX, YA, GY, and BJ, the pressure modules in all other administrative regions were at an “Unhealthy” and “Morbidity” level, with a total of seven. In 2000, nine administrative regions were at an “Unhealthy” or “Morbidity” level, indicating that in 2000 the health level of the pressure modules in each administrative region was the lowest. During the research period, the pressure modules in WN and XY remained at a “Morbidity” level, while GY remained at a “Very healthy” level. Overall, the health level of pressure module has improved. The health level of the pressure module has gone through a process of first deteriorating and then improving, with the number of administrative regions under “Very healthy” going through a process of first decreasing and then increasing, from three in 1980 (GY, DX, and YA) to one in 2000 (GY) and two in 2020 (DX and GY). With the growth of population and economic development, better developed cities such as XA, WN, and TC are facing greater population and land pressure, while slower developing cities such as DX and TS are facing less pressure.

Fig. 3
figure 3

Ecological health assessment results of pressure (ac), state (df), and response (gi) of different cities

For state module, all administrative regions were classified as “Sub-healthy” level or above (Fig. 3d–f). During the research period, except for TS, PL, TC, XY, BJ and XA in 1980 and PL, TC, BJ, and XA WN in 2000, DX, PL, TC, XY, WN, BJ and XA in 2020 being “Healthy” and “Very healthy” levels, all other administrative regions were at the “Sub-healthy” level. It was obvious that the health level of the state module has gone through a process of first deteriorating and then improving. The number of administrative regions with a “Healthy” level or above decreased from six in 1980 to four in 2000, and increased to seven in 2020. The health status of the state module was closely related to the natural conditions, and the improvement of the state level indicated that vegetation restoration measures in the watershed have significant effects.

For response module, in 1980 and 2000, all cities were in “Morbidity” or “Unhealthy” level, while in 2020, the health level has been improved in all administrative regions, with YA, XY, TC, BJ, and XA being upgraded to “Healthy” levels, GY, PL, TS, and QY to “Sub-healthy” levels (Fig. 3g–i). Compared to 1980 and 2000, the health level of the response module in 2020 significantly improved. There are two levels of response, natural and social response, indicating that administrative regions have achieved significant results in economic development or ecological restoration.

Comprehensive evaluation of ecological health

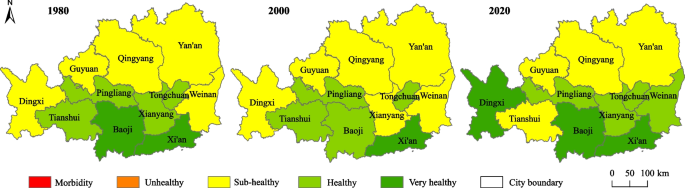

The ecological health assessment results of administrative regions in the WRB in 1980, 2000 and 2020 are shown in Fig. 4, and the relative membership degrees to different health levels are shown in Table 2. Overall, the ecological health of various administrative regions in the WRB has gone through a process of relative improvement, deterioration, and then improvement. According to the principle of maximum membership, in 1980, the number of administrative regions classified as “Healthy” or “Very healthy” was six, namely TS, PL, TC, XY, BJ, and XA, while all other administrative regions were at a “Sub-healthy” level. In 2000, the ecological health level of XY decreased to a “Sub-healthy” level, and that of BJ decreased to “Healthy” level, while the health levels of other administrative regions remain unchanged. In 2020, the number of administrative regions classified as “Healthy” or “Very healthy” increased to seven, namely DX, PL, TC, WN, XY, BJ, and XA, other cities were at “Sub-healthy” level. In terms of space, the ecological health status of cities in the north of the watershed was worse than that in the south, which was related to the economic development and natural conditions of different regions.

Fig. 4
figure 4

Comprehensive evaluation results of urban ecological health in different years

Table 2 Relative membership degrees of urban ecological health evaluation in different years

Obstacle degrees of indicators

Obstacle degrees of pressure, state, and response module

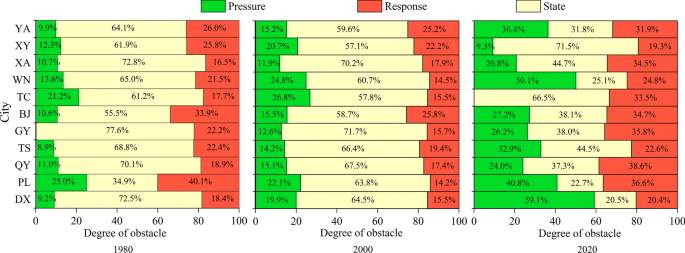

The obstacle degrees of pressure, state and response modules to ecological health varied in different administrative regions and years (Fig. 5). The state module dominated in the ecological health assessment in most of the administrative regions. Except for the response as the main obstacle factor to the ecological health of PL in 1980 and the pressure as the main obstacle factor to YA, WN, PL, and DX in 2020, the main obstacle factor to the ecological health of other administrative regions in 1980, 2000, and 2020 was the state module. This was because there were many indicators in the state module, and this module accounts for a large proportion of the weight, so it has a greater impact on the results of ecological health assessment.

Fig. 5
figure 5

Obstacle degrees contributed by pressure, state, and response modules in 1980, 2000, and 2020. Obstacle degrees less than 5% did not display

Obstacle degrees of individual indicators

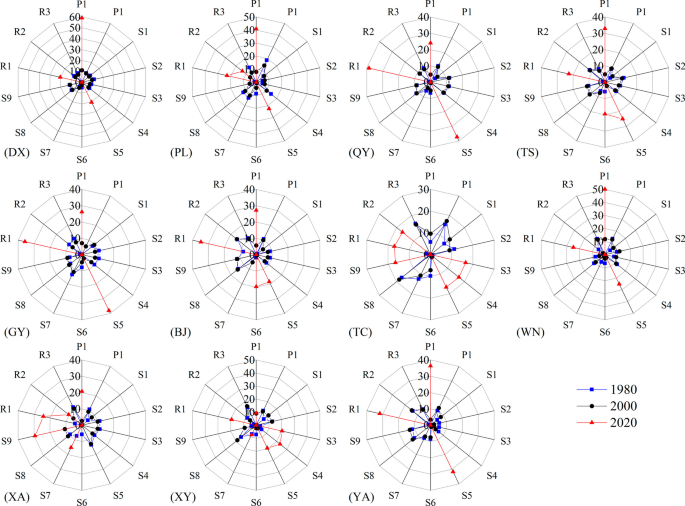

The obstacle degrees of all individual factors to the ecological health are shown in Fig. 6. The top five individual indicators and their obstacle degrees to different administrative regions in the WRB from 1980 to 2020 are shown in Table 3. For a single city, the top five indicators that affected its ecological health level in different years were basically the same, but there are differences in some cities in 2020. For individual indicator, in the pressure module, both population pressure (P1) and land pressure (P2) posed significant obstacles to ecological health of the administrative regions. In the state module, the obstacle degrees of patch density of construction land (S5), comprehensive elasticity index (S8), and ecosystem service value (S9) were relatively high. In the response module, soil erosion index (R1) and per capita GDP (R3) posed significant obstacles to ecological health. Overall, the indicators in the state module have the highest number of obstacles to ecological health in the top five, which was consistent with the results in Fig. 5. Compared to 1980 and 2000, the number of obstacles to ecological health in 2020 was relatively small, but the degree of obstacles was relatively high. For different cities, due to differences in socio-economic development status and basic ecological environment conditions, single indicator had different obstacle degrees to ecological health. For example, in 2020, population pressure (P1), patch density of construction land (S5), and soil erosion index (R1) became the single indicators that most affect ecological health.

Fig. 6
figure 6

Obstacle degrees contributed by single indicator of different cities in 1980, 2000, and 2020

Table 3 Obstacle degrees of top five indicators to urban ecological health


Factors affecting urban ecological health

The impact of economic development on ecological health

Based on the constructed PSR framework and individual obstacle degree analysis, the indicators related to socio-economic and having high obstacle degrees to ecological health were P1 and S3 indicators. In economically developed cities like XA, the obstacle degree of R3 to ecological health was relatively low, while the obstacle degree of P1 was high. However, in economically underdeveloped areas, such as DX and TS in Gansu Province, the situation was the opposite. This is because with the economic development and population growth, the social response had reached a high level, but along with the fact that the increasing rate of resources demand, the pressure facing cities is gradually increasing, and excessive exploitation of resources leads to resource depletion, ultimately disrupting ecological balance, which was consistent with the results of Liu et al. (2020c). What’s more, population growth may also lead to environmental pollution and ecosystem degradation, affecting biodiversity and ecological service functions. Wang et al. (2019) found that during the urban development process, a large amount of industrial and agricultural waste was generated, causing huge damage to the environment. Zhu and Li (2014) pointed out that many urbanization efforts were achieved at the cost of damaging the environment, such as removing lots of surface vegetation, which worsened the ecological health status. Our results were consistent with Zhang et al. (2019), who found that ecological deficit often existed in economically developed regions, such as the eastern regions of China. Cheng et al. (2022) also concluded that developed urban areas often had low security due to strong socio-economic pressure. Generally, the comprehensive ecological security of China’s land resources showed a lower level in the northwest.

Dai and Khan (2022) thought that city was a unified spiral composite system of “socio-economic-environment”, and how to effectively protect the ecological environment while achieving economic and social development is an important value of urban ecological security research. To improve the ecological environment, China has implemented a series of major measures. The 13th Five-Year Plan (2016–2020) have to some extent alleviated the pressure on urban resources and land, and promoted high-quality development of cities by adjusting the scale of cities according to resource and environmental carrying capacity, implementing green planning, design, and construction standards (Zhang et al. 2019). In this study, seven administrative regions reached a “Healthy” or higher ecological health grades in 2020, indicating that the combination of ecological and economic measures has significantly improved the urban ecological health of the WRB.

The impact of land use on ecological health

The impact of indicators closely related to land use/land cover conditions on ecosystem health also cannot be ignored, such as P2, S2, S3, S4, S5, S6, and R2. During the research period, the land use in the WRB has undergone significant changes. The area of forest land, grassland, and construction land in each administrative region showed an increasing trend, while the area of cultivated land decreased (Figs. 7 and 8). The growth of construction land area indicates that the WRB has undergone rapid urbanization and industrialization processes. With population growth and economic development, the demand for housing, infrastructure, and industrial land has increased, leading to the conversion of existing farmland into construction land. The area of water and unused land has increased and decreased. WN has the largest area of water and unused land, while TC has the smallest area of water and unused land. Among different administrative regions, YA has the largest reduction in farmland and the largest increase in forest and grassland areas. Compared to 1980, arable land has decreased by about 19.29%, while forest and grassland have increased by 9.79% and 7.22%. The construction land area in WN, XA, and XY regions has increased the most significantly, with increases of 62.25%, 80.41%, and 83.16%, respectively. The development of the economy and the construction of infrastructure have promoted social reactions, while vegetation restoration has promoted the improvement of state modules. Compared with 1980 to 2000, the speed of land use change was faster from 2000 to 2020. This explains why in 2020, compared to 2000 and 1980, the degree of obstacles to urban ecological health in the state module decreased, while the degree of obstacles in the pressure and response module increased.

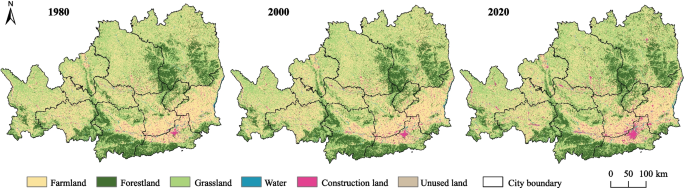

Fig. 7
figure 7

The land use distribution of different administrative regions in the Wei River Basin in 1980, 2000, and 2020

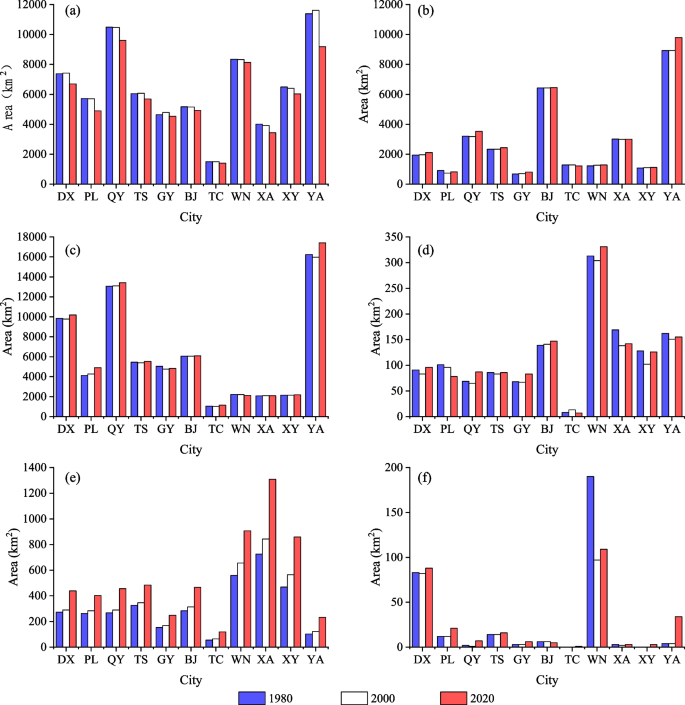

Fig. 8
figure 8

Area changes of different land use types of various administrative regions in 1980, 2000, and 2020. af represent cultivated land, forest land, grassland, water area, construction land, and unused land, respectively

Administrative regions with a large proportion of agricultural land had poor ecological health status due to high population and land pressure. For example, XY, WN, and BJ located in the Guanzhong Plain area, were greatly affected by the P2 index. Cities that were greatly affected by state module often have characterized by dry climate and sparse vegetation, such as PL, QY, and TS in Gansu Province, TC and YA in Shaanxi Province. Most of these places are in the Loess Plateau region, with crisscrossing gullies, fragmented terrain, and severe soil erosion (Jiang et al. 2018). The natural conditions were initially at a relatively low level, resulting in weaker primary vegetation productivity and ecosystem service functions. Coupled with underdeveloped economy and the inappropriate land use planning and sustainable development measures, the state and response level for ecological health in these places was consequently constrained (Li et al. 2012). To protect the ecological environment and improve land quality, the Grain for Green Project was carried out first in Sichuan, Shaanxi, and Gansu provinces, and has been implemented nationwide since 2000 (Mu et al. 2007). However, since various vegetation restoration measures have only just begun, and the ecological environment was still at a poor level, resulting in poor performance of state assessment for ecological health in 2000. By 2020, the increase in vegetation coverage has improved the ecological environment and enhanced the resilience to pressure (Qiu et al. 2022). Therefore, after 2000, the obstacle degree of indicators in state module which restricted by land use types decreased, which led to the ascended levels of comprehensive urban ecological health.

In addition, the indicator of proximity to water bodies is an important factor affecting ecological health. Although the Wei River flows through these administrative regions, its distance from the water system varies, resulting in differences in the ecological health status of each administrative region. Firstly, water systems are an important source of water resources, and their proximity directly affects the availability and supply efficiency of water resources. Regions closer to the water system may have easier access to sufficient water resources, which is beneficial for maintaining regional ecological balance and supporting biodiversity. Secondly, water systems play an important role in regulating climate and maintaining hydrological balance. Regions closer to the water system may benefit from more stable climate conditions and better flood prevention and control capabilities. Thirdly, the health status of the water system directly affects the water quality in the surrounding areas. Areas closer to water systems need to pay more attention to water quality protection and pollution control to prevent pollutants from causing damage to water systems and ecosystems. Fourthly, water systems have a significant impact on the socio-economic development of surrounding areas, such as agricultural irrigation, industrial water use, and tourism development. Regions closer to the water system may have more advantages in economic development, but at the same time, it is necessary to balance development and ecological protection.

Suggestions for future urban development

Based on the comprehensive evaluation index system and obstacle diagnose, we identified the primary obstacle factors to ecological health. To provide theoretical references for the realization of efficient, coordinated, and sustainable development of society-economy-ecology, we proposed corresponding improvement suggestions for cities dominated by different obstacle factors. Cities dominated by pressure often have the characteristics of high population density and frequent economic activities. Thus, to improve the level of ecological health, the number of populations should be controlled within a reasonable range, or be transferred to adjacent cities with less pressure designedly. This can alleviate high pressure while improving the response level of nearby cities with the development of economy (Cheng et al. 2022). For example, the establishment and development of Xixian New Area, a core area of the Guanzhong-Tianshui Economic Zone, has helped Xi’an’s industries and population spread to Xianyang, optimizing industrial structure and urban functional zoning. For land pressure, it is essential to reasonably plan land resources and accelerate the construction of high standard farmlands.

Indicators of the state module were largely influenced by the vegetation coverage and the proportion of construction land. The state module dominated cities often characterized by adverse natural environment, leading to low carrying capacity and resilience, such as YA and GY. Therefore, the ecological restoration measures such as Grain for Green Project and afforestation should be implemented persistently and the quality of afforestation should be improved through reasonable allocation, and restoring some cultivated lands and overgrazed grasslands to forests and grasslands to improve soil and water conservation capabilities and increase biodiversity. After completing the restoration of existing farmland to forests, the government (county or township) shall organize the continued afforestation of barren mountains, deserts, and wasteland suitable for forests. In addition, the ecological environment in densely populated urban areas, such as XY and XA, can be effectively improved by increasing urban green spaces, optimizing urban planning, establishing a sound environmental monitoring network, and promoting green buildings.

Response is divided into natural response and social response. Improvement measures in terms of natural response can refer to that of state dominated cities, while social response is mainly reflected in economic development. Through breaking the boundaries of administrative divisions, promoting resource sharing and connectivity, exploring and improving benefit sharing and assistance mechanisms, promoting the “enclave economy”, and achieving coordinated development between developed regions and surrounding regions are effective strategies to promote the capability of social response.

In addition to targeted improvements to ecological health under the leadership of different modules, the following measures also contribute to the restoration and improvement of ecological health. The soil and water conservation projects, such as constructing terraces, dams, sedimentation tanks, should be implemented continuously to reduce soil erosion and protect and improve water quality. The supervision of industrial emissions, agricultural fertilizer and pesticide use, urban sewage should be strengthened to reduce the impact of pollutants on the ecosystem. The sustainable agricultural models such as organic agriculture and ecological agriculture should be promoted to reduce the use of chemical fertilizers and pesticides, and improve the ecological friendliness of agricultural production. An ecological compensation mechanism should be established to provide economic compensation to areas or groups that provide ecological services, to encourage all parties to participate in ecological protection. In urban planning, the integrating green spaces should be taken into to promote green building standards and enhance the service function of urban ecosystems. Finally, policies and measures should be developed to address climate change, including reducing greenhouse gas emissions and enhancing the adaptability of ecosystems. Through these comprehensive measures, the ecological health can be effectively improved and maintained, and the goal of harmonious coexistence between humans and nature can be achieved.

Advantages and disadvantages of the research

In response to the special natural environment and socio-economic conditions of arid and semi-arid areas in the WRB, an ecological health evaluation index system was constructed to suit for the characteristics of the watershed from three dimensions: pressure, state, and response. This can provide scientific support for the ecological health evaluation and protection of the WRB and even the arid and semi-arid areas in northwest China. In the evaluation process, the ecological health was treated as a fuzzy issue. The assessment model established by fuzzy mathematics was more in line with the actual situation than the traditional assessment method and weaken the defects of subjective arbitrariness. Moreover, the results can help to see the distance between the final ecological health rating and its adjacent health levels, which will guide the future planning of watershed. In terms of evaluation indicators, we selected the most critical indicators for each module to structure the evaluation system for the sake of efficiency, simplicity, and comprehensiveness and obtained consistent evaluation results with similar studies. At the same time, the obstacle analysis method was used to quantify the direction and degree of the impact of various ecological environments and socio-economic factors on the ecological health of the WRB at different time periods, which provided a new perspective for understanding and predicting changes of the ecological health in the WRB, and provided scientific basis and methodological support for formulating effective ecological restoration measures and promoting sustainable development strategies of the social economy.

Certainly, there are also some uncertainties in our research, mainly manifested in the following aspects. First, in the fuzzy mathematical evaluation model, the relative membership degree was sometimes very sensitive to the increase or decrease of the number of evaluated objects, which may affect the stability of the ranking results (Cheng et al. 2022). What’s more, the WRB has a vast terrain, and there are significant differences in the topography and landforms of different sub-basins. Using a single evaluation system may not accurately reflect the actual ecological health status of the basin, and social and economic data are mostly based on administrative regions, making it difficult to expand to natural watersheds. In order to improve the accuracy and applicability of evaluation, future research should consider using more refined geographical units, such as using grid based methods or conducting ecological health assessments based on small watersheds, which can capture the spatial distribution differences of ecological health in more detail, thereby providing more accurate data support for ecological protection and management. This also provides a train of thought and method for ecological health assessment in other watersheds around the world.


Based on the PSR framework, this study constructed a comprehensive evaluation index system for ecological health, and used the fuzzy comprehensive assessment model to analyze the ecological health status of eleven administrative regions in the WRB in 1980, 2000 and 2020. Then, the obstacle model was applied to quantify the obstacle degrees of pressure, state, and response modules, as well as individual indicators on urban ecological health. The main conclusions are as follows:

  1. (1)

    The comprehensive evaluation index system constructed based on the PSR framework could reflect the status of urban ecological health in the WRB. During the study period, the urban ecological health in the WRB went through a process of first deterioration and then improvement. The number of administrative regions in “Healthy” status decreased from six in 1980 to five in 2000. By 2020, the ecological health level of seven administrative regions has reached the “Healthy” or “Very healthy” levels.

  2. (2)

    Obstacle analysis showed that state module of the PSR framework was the main obstacle to urban ecological health, and dominated in most of the selected administrative regions. Population pressure (P1), patch density of construction land (S5), comprehensive elasticity index (S8), soil erosion index (R1), and per capita GDP (R3) were the top five individual indicators affecting urban ecological health.

  3. (3)

    The dominated obstacle modules or indicators for ecological health varied in different regions and periods. For economically developed cities, population pressure was often the main obstacle for urban ecological health, while in economically underdeveloped regions, the social response was the main obstacle. To improve the levels of urban ecological health, it is necessary to restore the natural ecological environment and control population size while accelerating economic construction.

Our findings could provide a scientific foundation for safeguarding ecological health in WRB and provide methodological references for subsequent related researches.
