Runoff and soil loss responses of cultivated land managed with graded soil bunds of different ages in the Upper Blue Nile basin, Ethiopia

Abstract

Background

In view of a wide range of on-site and off-site impacts of soil erosion, different soil and water conservation measures have been implemented mainly over the last two decades in the Gumara watershed and Ethiopia at large. But their effects have not been sufficiently documented, and maintenance of structures received very little attention. This study investigated the effectiveness of graded soil bunds of zero and 11 years of age in reducing runoff and soil loss. Six hydrologically isolated experimental runoff plots (three treatments × two replicates) were prepared to observe rainfall, runoff, and sediment concentrations in the 2019 summer rainfall season (covering approximately 70% of the annual rainfall).

Results

Newly constructed soil bunds reduced runoff by 34.94 and 25.56% compared to the old and non-treated counterparts, respectively. Similarly, 59.6 and 48.3% soil loss reductions were observed. The amount of soil loss in non-treated plots was twice that from the new plots and even 1.6 times higher than that from the old-graded soil bund treatments. The rate of soil loss in the new- and old-graded soil bund-treated and non-treated plots was 23.5, 45.6, and 58.1 t ha⁻¹ year⁻¹, respectively. However, the effectiveness of the old soil bunds was much lower (only − 12.6 and − 21.7% in runoff and soil loss, respectively) than its new equivalent. Graded soil bunds, in its new form, reduced runoff, runoff coefficient, and soil loss significantly (P < 0.05). Regardless of the treatments, from the start of the rainy season to the end, runoff and runoff coefficient showed an increase, but sediment concentration decreased. Newly constructed soil bund is the most effective in reducing runoff and soil loss.

Conclusion

Graded soil bunds reduced runoff and soil loss significantly, but the rate even in the treated plots was very high when compared to both the soil loss tolerance (1–6 t ha⁻¹ year⁻¹) and formation rate (10–14 t ha⁻¹ year⁻¹) estimated for the area. Hence, these structures need to be supported by other measures such as grass strips, agro-forestry, and percolation ditches, for better results. Besides, regular maintenance by either removing sediments from bund furrows or increasing the bund height is recommended for sustained reduction of runoff and soil loss.

Introduction

In Ethiopia, rainfall-runoff led soil erosion is indeed a fundamental problem (Adgo et al. 2013; Tamene and Vlek 2008) and the worst in the world (Hurni et al. 2015b). It is considered to be the main driver of land degradation in the rain-feed agricultural areas of the country (Hurni et al. 2015b), significantly affecting both on-site and off-site ecosystems (Yaekob et al. 2020). The loss of top fertile soil by water erosion creates severe limitations to sustainable agricultural land use, which lead to reduced soil productivity and food insecurity (Hurni et al. 2015a; Taddese 2001; Tamene and Vlek 2008).

Soil erosion not only is jeopardizing agricultural sustainability (Hurni et al. 2015a; Tamene and Vlek 2008; Yaekob et al. 2020; Yibeltal et al. 2019) but also causes streams, lakes, dams, and reservoirs siltation (Haregeweyn et al. 2017; Tamene and Vlek 2008; Yaekob et al. 2020), and downstream ecosystem impacts (Haregeweyn et al. 2016). This can have severe impacts on irrigation agriculture and related investments in different parts of the country. In general, soil erosion has been a great challenge for agriculture both in its on-site and off-site effects. It is therefore a potential threat to the national food supply (Mekuriaw et al. 2018) and the economy of the country (Tamene and Vlek 2008).

The problem, particularly in the highlands, is widespread, and threatening as a result of long-term intensive cultivation, erosion-prone topographic, and climatic conditions (Lemma et al. 2019; Nyssen et al. 2004). Ethiopia, from its highland portions, losses 1.5 billion tonnes of soil annually, which could reduce crop yield by 1–1.5 million t year⁻¹ (Taddese 2001). Besides, Hurni et al. (2015a, 2015b) estimated a loss of 940 million t year⁻¹ net soil from its rain-fed agricultural areas. Several model-based studies conducted in the Upper Blue Nile basin (hereafter UBNB) over the last decade show that the estimated soil erosion rate was reaching and may exceed 200 t ha⁻¹ year⁻¹ on bare and cultivated steep slope landscapes (e.g., Belayneh et al. 2019a; Bewket and Teferi 2009; Haregeweyn et al. 2017; Mekuriaw et al. 2018). Field measurement-based studies also reported an average erosion rate of 31–37 t ha⁻¹ year⁻¹ (Subhatu et al. 2017). The rates are much greater than both the estimated soil loss tolerance 1–6 t ha⁻¹ year⁻¹ (Hurni 1983b) and soil formation rate of 10–14 t ha⁻¹ year⁻¹ for Gojjam area in the UBNB (Hurni 1983a).

According to different previously studied research results, the agricultural land in the highlands is the most erosion-threatened portion in Ethiopia (Belayneh et al. 2019a; Hurni et al. 2015a; Hurni et al. 2015b; Nyssen et al. 2004). The dissected/undulating topography, high rainfall coupled with the more intensified agricultural system makes it more vulnerable to rainfall-runoff erosion. Besides, the cultivation of marginal lands, degradation of the forest for crop cultivation, and overgrazing are also considered the major factors (Adimassu et al. 2014; Hurni et al. 2015a; Nyssen et al. 2004). As a result, observable erosion features (rills, inter-rills, and gullies) are common particularly following the period of monsoon rainfall.

Considering the significant negative effects posed by soil erosion, a range of soil and water conservation (hereafter SWC) measures have been practiced in different magnitude in the Ethiopian highlands since the 1980s (e.g., Adgo et al. 2013; Adimassu et al. 2014; Dagnew et al. 2017; Dagnew et al. 2015; Haregeweyn et al. 2015), although the conservation programs were targeting frequently drought-affected areas of the northern and northeastern parts of the country (Ebabu et al. 2019; Haregeweyn et al. 2015; Mekuriaw et al. 2018). SWC practices by community mass mobilization as a nationwide 30 days public campaign work was strongly implemented since 2009 (Haregeweyn et al. 2012). At present, large-scale tree planting has been undertaken and millions of hectares of land have been treated with different conservation measures such as terraces, trenches, and percolation ponds through government-led community mass mobilization (Yaekob et al. 2020). The initiatives were targeting to reduce soil erosion (both runoff and soil loss), improving soil fertility, rehabilitation of the degraded land, and increase agricultural productivity (Mekuria et al. 2007). But, conversely, soil erosion has been increasing from 130 to 182 million metric tonnes from 1995 to 2005 (Environment for Development 2010).

The effectiveness of SWC measures was evaluated by a number of studies (e.g., Dagnew et al. 2015; Mekuria et al. 2007; Sultan et al. 2017; Taye et al. 2015; Temesgen et al. 2012). Most of them are focused on the northern and eastern arid and semi-arid parts of the country. Despite greater investment in financial and labor resources for sustainable land management, studies of runoff and soil loss reduction have been limited in the UBNB (Ebabu et al. 2019). On the other hand, the majority of these studies evaluated soil loss and runoff on newly constructed SWC structures (e.g., Adimassu et al. 2014; Dagnew et al. 2017; Sultan et al. 2017; Temesgen et al. 2012). Most of the efficiency measurements are conducted on structures with only a few years old that have sufficient furrow depressions and may not be representative of the real situations (Nyssen et al. 2007). But the ability of excavated structures to trap sediment and runoff decreases with time. Its effect more likely diminishes due to damage of structures and sediment infilling (Taye et al. 2015). Unless reconstruction and removing of sediments’ that are accumulated in the bund furrows, the amount of water and sediments to be trapped decreases year by year. Almost all SWC implemented in the watershed were constructed by community mass mobilization, and after construction, the level of maintenance has been very low in both the community and local government. As a result, SWC structures once constructed will remain for several years without maintenance. Particularly in cultivated fields, within a few years of construction, either erosion sediments or farmers while plowing nearly totally filled furrow depressions. It has been a usual practice in the Gumara watershed, UBNB (Belayneh et al. 2019b), and most parts of Ethiopia at large.

In the Gumara watershed, in which SWC has been practiced for at least the last two decades, its effectiveness neither in its new or old forms have not been evaluated in a scientific study so far. Continuing the implementation without scientific evaluation of the impacts and its effectiveness may cause unnecessary wastage of capital, labor, time, etc. Most importantly, the objective of minimizing further soil erosion damages and land rehabilitation may not be achieved as planned.

Understanding the effectiveness of the most intensively used graded soil bund with different ages by weighing against each other and the conventional cultivation (non-treated) is vital to recommend for future sustainable watershed management plans and better management implications in the local area. The most commonly used methods to measure the effectiveness of conservation measures are soil loss ratio and runoff ratio (Maetens et al. 2012a), which are used in the present study. The main purpose of this study was to investigate the effects of graded soil bunds of different ages on runoff, runoff coefficient, and sediment loss in the Gumara Watershed.

Materials and methods

Study area

The study area (Gumara watershed) is located in the Dega Damot district, West Gojjam Administrative Zone of Amhara region, northwestern Ethiopia (Fig. 1). The watershed is geographically located at 10° 50′ 15″ to 11° 0′ 40″ N latitude and 37° 30′ 40″ to 37° 41′ 22″ E longitude. It covers an area of 204.4 km². The Gumara stream is among the headwater streams of UBNB that originates from the northwestern continuation of the Choke Mountain in Gojjam. The watershed has elevations between 1864 and 3235 m above sea level. It is part of the northern highland dominated by the Oligo-Miocene volcanic trap basalt rock covered by the early tertiary volcanoes, and part of the Cenozoic volcanic and sedimentary rock formations (Abbate et al. 2015).

Fig. 1

Experimental erosion plots site in Gumara watershed, Upper Blue Nile basin, Ethiopia

Typical soils’ covering the watershed includes haplic luvisols, haplic nitisols, and haplic alisols (Ministry of Water Resources of Ethiopia (MoWR), 1998). Haplic alisols cover the dominant portion (43.76%) of the watershed. The soil in the area is characterized by heavy clay content on average approximately 65% (Belayneh et al. 2019b). The dominancy of clay soils than sand and silts can cause high runoff and sediment loss (Bashari et al. 2013). Particularly at the start of the rainfall season, detachment and transport of sediments is high (Bashari et al. 2013). Heavy clay soil is distinguished as smaller infiltration capacities (Critchley et al. 1991). Its infiltration capacity strongly decreases with increasing rainfall intensity and duration (Critchley et al. 1991a). The nature of rainfall in our study area is high and torrential, which together with that of heavy clay nature of the soil makes it more vulnerable to erosion. Besides, soils have been intensively cultivated for a long period and land has been strongly degraded. Currently nearly, 90% of the local population relies on subsistence based agricultural activities with a population density of over 185 persons per square kilometer. This might be the case that the soil in the Gumara watershed is characterized by low organic carbon and total nitrogen contents (Belayneh et al. 2019b).

The mean annual rainfall is approximately 2000 mm (computed from 1997 to 2017 monthly rainfall depth data collected at Feres Bet station), received in a unimodal pattern. Rainfall varies seasonally, with approximately 80% of the rainfall occurring between May and September. The annual average temperature is 16.6 °C, ranging between a minimum value of 9 °C in January and a maximum value of 25.8 °C in April.

Cultivated land, forestland, shrub-woodland, grazing land, settlement land, and bare land are the major land use/covers constituting the watershed. However, the watershed is considered to be an agricultural watershed, in which cultivated land and grazing land cover about 58.09% and 6.5%, respectively (Belayneh et al. 2019a). Subsistence agriculture, in the form of mixed crop and livestock systems, is the main source of livelihood for about approximately 90% of the watershed community. The area is characterized by its high production potential, intensively cultivated, mixed farming, and ox-plow cereal production belt in the northwestern highlands of Ethiopia (Zeleke and Hurni 2001). The population density of the area was 184 in 2007 (Central Statistical Agency of Ethiopia (CSA) 2007).

Research design

A complete random block (CRB) design was employed. The CRB was used to design, collect, and analyze the runoff and sediment loss from experimental erosion plots. It is a type of design that a set of experimental units are grouped (blocked) in a way that reduces the variation among units within groups. It involves the principles of replication and randomization to minimize errors (Kothyari et al. 2004).

Selection of experimental erosion plot site and conservation method

A preliminary field visit was performed to select an appropriate and easily accessible study site to conduct the study. Due to different challenges related to plot scale studies, easy access to the study site is important for frequent supervision, transportation, and laboratory analysis (Hudson 1993). Experimental erosion plots were prepared in Shangi Dereke kebeles¹, at the upper part of the watershed. The site is selected for three main reasons. First, it is a cultivated land and is characterized by a moderately steep slope, which represents much of the erosion of vulnerable cultivated land. Besides, unlike other land uses, SWC practices are mostly practiced on cultivated land. Second, it has been treated with graded soil bund some 11 years ago (2008) following recommended standards (mainly spacing of bunds, which is easily identifiable in its old age). It was important to compare the effectiveness of old against the newly excavated graded soil bund so as to be able to evaluate the effect of bund maintenance. Thirdly, the site is relatively accessible for easy transportation of plot equipment, supervision, and collection of rainfall and runoff data, and transportation of sample runoff for sediment concentration analysis. To study the whole watershed would have been logically and financially impossible, so we chose a moderately steep slope (18%) cultivated plot to better observe its effectiveness on more erosion-prone cultivated lands in the watershed. Cultivated land is the most erosion-prone land use in the watershed (Belayneh et al. 2019a) and other parts of Ethiopia (Hurni et al. 2015a; Hurni et al. 2015b; Nyssen et al. 2004). Indeed, SWC measures (particularly graded soil bunds) are commonly implemented on croplands in the area.

Graded soil bund was selected as it is the most commonly used type of SWC measure in the watershed. The selected cultivated land, which had been managed with graded soil bund since 2008 was re-constructed as a new bund for new bund-treated plots² (P_new), eliminated or leveled for non-treated plots³ (P_non), and kept as it is for old bund-treated plots⁴ (P_old). The effects of newly excavated and old-graded soil bund were compared with that of the non-treated plot (controlled). The difference between P_new and P_old was also studied to see the effects of age with little/no bund maintenance on runoff, runoff coefficient, and soil loss.

Experimental plot preparation

Six experimental erosion plots (three treatments with two replicates) were prepared at a slope condition of 18% (measured by Suunto PM-5 Clinometer) on the wheat (Triticum aestivum) cultivated land. The size of the plots was 4 × 30 m (120 m²). Critchley et al. (1991a) indicated that it is good if the plot size is large but it is not always possible to handle the runoff generated and 3–4 m width and 10–12 m length is recommended and a minimum length of 10 m as is explained by Morgan (2005). Therefore, the 120 m² plot size in this study is adequate for runoff and sediment loss measurement for comparison purposes. Plots were separated by 50-cm-long geomembrane (1-mm-thick) in which 20 cm was inserted to the ground to protect lateral flows from and to the surrounding area (Critchley et al. 1991a; Hudson 1993; Morgan 2005). The height of the bund at the left and right side was 5 cm lower to allow the flow of excess runoff towards the collection ditch, because the graded bund (that allows outflow of excess runoff from the bund furrow) in the erosion plots has already been closed and hydrologically isolated.

The total runoff generated was collected in a trench covered with a geomembrane (0.5-mm-thick) at the lower end of each plot. The size of the trench was large enough 3.8 m wide, 1.3 m deep, and 1.5 m long (7.41 m³ volume or 6.2% of the plot area) so as to handle all runoff generated from the plot (Fig. 2). The size of the trench was developed considering the maximum rainfall in the past 6 years daily rainfall and previously reported research results of the maximum runoff coefficient. Plots were randomized and replicated twice (Morgan 2005) for the quality of the result and minimize bias among treatments (Hudson 1993). Accordingly, treatments in this study were replicated twice and randomized (Fig. 2).

Fig. 2

A simplified representation of experimental erosion plots prepared for the study a schematic representation and b partial view of plot prepared at the study site

Fig. 3

A simplified methodological framework employed to study the effect of new and old soil bund treatment on runoff, runoff coefficient, and soil loss against the non-treated plots

Newly excavated graded soil bunds were constructed following the SWC implementation guideline developed for developmental agents by the Ethiopian Ministry of Agriculture (Hurni et al. 2016) together with kebele natural resources experts.

Data collection

The rainfall, runoff, and soil loss data were collected in the main monsoon rainfall season of 2019 (from June to September covering on average ~ 70% of the annual rainfall). The total runoff accumulated in the tanker (trench) for each plot was measured using a known volume plastic tanker and recorded after 6 h of every erosive rainfall event (≥ 8 mm of rainfall depth). Event rainfall having a depth of less than 8 mm yields no runoff. For soil loss determination (sediment concentration), a 1-l runoff was sampled after thoroughly stirring the runoff collected in the trench to mix all sediment settled at the bottom (Hudson 1993). After taking sample runoff, all trenches were emptied and cleaned to make it ready for the next rainfall-runoff event.

Event rainfall depth data was measured from the site using a manual rain gauge (a plastic rain gauge collected from the National Meteorology Agency) installed in the middle of experimental erosion plots.

Runoff, runoff coefficient, and sediment concentration analysis

One-liter runoff was taken from each erosive rainfall event to estimate sediment concentration (g L⁻¹) (Hudson 1993). Sample runoff was filtered with the Whatman^TM grade-1 filter paper (18.5-cm diameter and 2.5-μm pore size) and then oven-dried for 24 h at 105 °C (Sultan et al. 2017). After measuring the weight of the oven-dried filter paper using a Sartorius Type analytical balance, the mass of the clean filter paper (after filtering and oven-drying 1-liter clean water) was subtracted to find the actual soil loss (Kothyari et al. 2004). The laboratory analysis was conducted at Debre Markos soil testing laboratory and construction technology management laboratory of Debre Markos University.

Total event and monthly and annual⁵ runoff (in liters) generated from each plot was calculated by measuring the total runoff collected in the trench for every erosion event. The direct rainfall into the runoff collection trench was subtracted from every event rainfall total runoff. The event and monthly and annual runoff depth in millimeters was calculated as follows (Satriawan et al. 2015).

$$ {R}_{\mathrm{d}}=\frac{V_{\mathrm{r}}}{A_{\mathrm{p}}} $$

where R_d is runoff depth (in millimeters), V_r is the volume of runoff (in cubic millimeters), and A_p is plot area (in square millimeters)

Runoff coefficient (RC) was determined by the ratio of runoff to the corresponding rainfall both expressed in depth (in millimeters) (Adimassu and Haile 2011; Critchley et al. 1991a). The runoff coefficient indicates how much proportion of rainfall become runoff, and the infiltration and retaining (including transpiration and evaporation) capacity of each treatment type.

$$ \mathrm{RC}=\frac{R\ \left(\mathrm{mm}\right)}{\mathrm{RF}\ \left(\mathrm{mm}\right)}\times 100 $$

where RC is runoff coefficient (in percent), R is runoff (in millimeters), and RF is rainfall (in millimeters)

Following the determination of sediment concentration (in g L⁻¹), the total event and monthly and annual soil losses in t ha⁻¹ were calculated as follows (Satriawan et al. 2015).

$$ {\mathrm{SL}}_{\mathrm{tot}}=\frac{\mathrm{SC}\times {V}_r}{A_{\mathrm{p}}}\times {10}^6 $$

Where SL_tot is total soil loss (in t ha⁻¹), SC is sediment concentration (in g L⁻¹), V_r is the total volume of runoff (in liters), and A_p is the area of the plot (in square meters)

Statistical analysis

One-way analysis of variance was applied to test whether there is a significant difference in runoff and runoff coefficient between P_new, P_old, and P_non. Although the runoff data is non-normal, if the sample size within groups is larger (n > 40) the sampling distribution can be normal, and using ANOVA is recommended (Elliott and Woodward 2007; Urdan 2010). The robust test of ANOVA (Welch) was used for heterogeneous soil loss data analysis because the Welch test is the best method for heterogeneous but balanced data (Liu 2015; Stevens 2007). Regression analysis was employed to show monthly and annual rainfall-runoff-soil loss relationships under different treatments. The analysis was performed using SPSS version 20 and Microsoft Excel software. Generally, the methodological procedures followed in this study to analyze runoff, runoff coefficient, and soil loss are presented in Fig. 3.

Results and discussion

The effectiveness of graded soil bunds in reducing runoff, runoff coefficient, and soil loss

A total of 112 rainfall events were recorded during the monsoon (summer) rainfall season of 2019, but 76 of the rainfall events were ≥ 8 mm (Table 1; Fig. 4). A rainfall depth exceeding 8 mm yields runoff to the runoff collection trench, and therefore, runoff, runoff coefficient, and soil loss were studied using these events. Event rainfall depth from June to September ranged from a minimum of 0.6 mm to as high as 65.4 mm, with a total depth of 1732.2 mm.

Table 1 Monthly and annual rainfall (RF), runoff (R), runoff coefficient (RC), and the relative effect (RE) of conservation measures

Fig. 4

Event-based rainfall depth (RF, in millimeters) and observed runoff depth (in millimeters) in plots treated with new- and old-graded soil bund and non-treated plot

Effects on runoff

Event-based, monthly, and annual runoff and rainfall for P_new, P_old, and P_non are shown in Table 1 and Fig. 4. The maximum event runoff depth of 42.07, 37.42, and 33.62 mm was recorded at mid-August (14 August 2019) for P_new, P_old, and P_non, respectively. The cumulative monthly runoff depth showed that the maximum runoff for all the treatments was recorded in August (267.63, 241.49, and 198.10 mm for P_new, P_old, and P_non, respectively), although the rainfall depth was greater in July. This might be due to the saturation of water table and lesser infiltration in August, but the unsaturated surface and disturbance of soil aggregates by plowing creating furrows that facilitate infiltration, and on-surface storage of runoff in June and July can minimize runoff. Runoff processes in northwestern Ethiopia have been driven by saturation excess overland flow (Zegeye et al. 2016). A study by Gebreegziabher et al. (2009) showed that unlike the situation at the beginning of the rainy season, infiltration decreased and surface runoff increased significantly at its end following the saturation of the soil and the sealing of cracks formed in the dry season.

P_new shows a greater reduction of runoff compared to that of both P_old and P_non. However, the effect was more strong at the beginning (June, 60.13%) than the mid (August, 32.37%), and ending (September, 38%) of the rainy season. On average, P_new reduced the annual runoff by 34.94% as compared to the P_non. The ANOVA F test result indicates that the mean differences of runoff depth among treatments are significant at P < 0.05 (Table 2). Tukey HSD multiple comparisons further showed that P_new significantly reduced average runoff depth compared to P_non (P < 0.05) (Table 3). The consistently lower volume of runoff in the newly excavated soil bund was due to the capacity of bund furrows that can hold and infiltrate a greater proportion of runoff. It was also observed that at the end of the rainfall event the bund furrows were filled with runoff.

Table 2 Significance test results of runoff (R), runoff coefficient (RC), and soil loss (SL) between plots with different treatments

Table 3 Multiple comparisons of mean differences of runoff (R), runoff coefficient (RC), and soil loss (SL) between the three treatments

The effect of P_new in runoff reduction for all events was higher, but relatively its effect decreases during high rainfall events. At the time of peak rainfall, the bund furrows quickly filled with runoff and overflows, which can lower its effect of runoff reduction. The intensity and duration of the rainfall events can also affect the runoff rate regardless of the rainfall depth. For instance, the depth of rainfall of 2 consecutive days (28 and 30 June 2019), was 18.9 and 32.5 mm but runoff reduction was 54.68 and 34.48%, respectively. The infiltration capacity of heavy clay soils strongly decreases with increasing rainfall intensity and duration (Critchley et al. 1991a). This implies that since the rainfall is very high in the Gumara watershed (the long-term average rainfall is ~ 2000 mm), soil bunds need to be supported by other biological and physical measures that can facilitate water infiltration and hold a greater proportion of runoff.

The findings of this study are consistent with the results reported by Adimassu et al. (2014) in the central highlands of Ethiopia, Taye et al. (2013) in the semi-arid northern Ethiopia, Ebabu et al. (2019) in the Upper Blue Nile basin, and Haregeweyn et al. (2012) in northern Ethiopia. All these studies reported that plots treated with SWC generate significantly lower runoff volume as compared to the non-treated counterpart. Adimassu et al. (2014) indicated that soil bund-treated plots generate a significantly lower amount of runoff (− 28%) than conventional plots. A 27% reduction of runoff volume was observed in the Enabered watershed (Haregeweyn et al. 2012). A plot-based evaluation of the effect of SWC showed a rise of runoff volume by 2 times in the non-conserved than the conserved plot in China (Zhao et al. 2019).

This is because the soil surface around SWC structures is characterized by high water infiltration (Taye et al. 2013). Conservation structures can act as a sink system of runoff, which consequently reduces overland flow (Taye et al. 2013). Further, they act as a barrier to the moving water and decrease the energy of runoff by decreasing slope length and steepness. The use of SWC structures decreases slope steepness by 1% every three years (Nyssen et al. 2007). The steepness and length of the slope determine the velocity and volume of runoff (Prasannakumar et al. 2012), which considerably affects the rate of soil erosion (Gashaw et al. 2017).

On the other hand, P_new reduced the annual runoff depth by 25.56% compared to that of the P_old. But the relative effect is slightly lower than with that of P_non. Nevertheless, the mean difference between P_new and P_old was not statistically significant (P > 0.05). Similarly, the annual runoff generated from P_old was smaller than that of the P_non by 12.6%, but ANOVA could not detect the difference at P < 0.05. This implies that the effect of old and un-maintained soil bund does not show a significant runoff reduction. This is mainly because after a certain years (mostly from 3–5 years) particularly on the cultivated land, the bund furrows nearly totally filled with sediments through runoff, plowing, or animal effect (free grazing is a common practice). Furrows at the beginning are constructed with a known depth and width purposefully to trap sediments and runoff until it overflows to a channel. But, when the furrows become filled, they do not hold any more sediment and runoff, although their effectiveness in decreasing the slope length and steepness is still important. This result implies that the effectiveness of SWC structures in reducing runoff diminishes as of time unless continued maintenance. Hence, frequent maintenance of bunds and sediment removal is needed (Wolancho 2015). But, conversely, maintenance of structures particularly making furrows empty for the next rainy season has been very limited in the watershed (Belayneh et al. 2019b).

Effects on the runoff coefficient

The runoff coefficient indicates the water infiltration and retaining capacity (including a portion of water lost through evaporation and transpiration) of specific land use or SWC treatment. The runoff coefficient can also imply how much rainfall becomes runoff (Adimassu and Haile 2011). Land use and its treatment generating the lowest runoff amount imply its high ability to hold and infiltrate water, and consequently decrease runoff and soil loss. It can increase an understanding that how much of the rainfall can be converted to on-site sinks and retained instead of to be a runoff for each SWC treatment.

The runoff coefficient results show greater disparity among treatments. The lowest runoff coefficient was recorded in the P_new (31.08%; Table 1). P_new reduced runoff coefficient by 34.9% and 25.6% against the P_old and P_non, respectively. The variation in runoff coefficient between P_new (31.08%), P_old (41.75%), and P_non (47.77%) is significant (Table 2; P < 0.001). Similarly, from the multiple comparison analysis results of the runoff coefficient, significant differences were observed between P_new with P_old and P_non (P < 0.001) and P_old with P_non (Table 3; P < 0.05). This result is slightly higher than the finding of Adimassu et al. (2014), who reported a reduction of runoff coefficient by 19% compared against the non-conserved plots in central Ethiopia. On the other hand, our result is much lower than that of the finding of Nyssen et al. (2010), who reported increased infiltration rate and a reduction of runoff coefficient by 81% in the May Zegzeg catchment. A long-term plot data-based meta-analysis result in Europe and the Mediterranean showed a mean annual runoff coefficient ranging from 5 to 10% in bare soils, tree crops, and vineyards (Maetens et al. 2012b). This is a very low result compared to that of the Gumara watershed. The runoff coefficient from runoff plots having an area of less than 200 m² is highly variable, ranging from 0 to 50% (Nyssen et al. 2010). The observed variation may be related to the prevailing characteristics of the plot in terms of soil type, type of land use, intensity, and amount of rainfall (Adimassu et al. 2014; Nyssen et al. 2010).

However, as it was observed on runoff, the effect of the soil bund on runoff coefficient decreased as it becomes older without regular maintenance. This was observed by an increase of runoff coefficient by 34.32% as compared to P_new and showed reduction only by 12.5% from the P_non. On the other hand, the runoff coefficient continuously increases from the start to the end of the rainy season (Table 1). A similar trend was also observed regardless of the treatments (Gebreegziabher et al. 2009). The reason might be attributed to the increasing water table, stabilization of the soil, and crop covers. Nyssen et al. (2007) explained that the runoff coefficient becomes higher when vegetation cover decreases.

Effects on soil loss

Event-based sediment concentration (g L⁻¹) and monthly and annual total soil loss (t ha⁻¹) are presented in Fig. 5 and Table 4. Unlike that of runoff and runoff coefficient, sediment loss in all the treatments was decreasing continuously from the start to the end of the rainfall season. At the beginning of June (5 June 2019), 9.1, 13.8, and 14.5 g L⁻¹ of sediment concentration was recorded for a 32.5-mm rainfall depth from P_new, P_old, and P_non, respectively. But, at the ending of August (26 August 2019), the observed sediment concentration value for the same rainfall depth (30.1 mm) was 0.9, 2.9, and 3.4 g L⁻¹ (Fig. 5), showed a drastic reduction. Similarly, regardless of the high variation of monthly rainfall depth (293.6 and 483.5 mm in June and August, respectively), the rates of soil loss were 5.75, 12.13, and 15.85 t ha⁻¹ in June and 5.74, 14.31, and 14.81 t ha⁻¹ in August for P_new, P_old, and P_non, respectively (Table 4). This shows that the rate of sediment loss is nearly similar irrespective of the greater variation of rainfall depth of months.

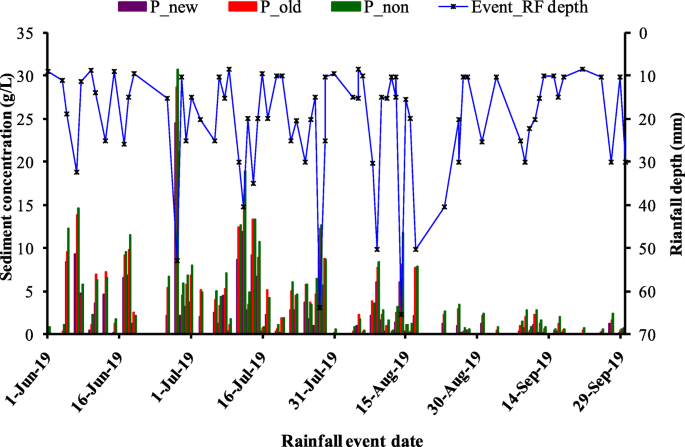

Fig. 5

Event-based rainfall depth (RF, in millimeters) and sediment concentration (SC, in g L⁻¹) were observed in the new- and old-graded soil bund-treated and non-treated plots

Table 4 Monthly and annual soil loss (SL) of treatments and the relative effect (RE) of graded soil bund treated as compared to the non-treated plots

During the start of the monsoon rainfall mainly in June up to July, most of the cultivated land has been bare and the soil disturbed through tillage (preparation of the land for sowing). These situations make the soil easily detachable, transportable, and more vulnerable for splash and rill erosion, which could probably cause high sediment concentration. However, in August and September, the growth of crop canopy, attachment of soil by crop roots, and stabilization of tillage-disturbed soils decrease the vulnerability of the soil for splash and rill erosion. Vegetation cover in cultivated plots increases from nearly zero during May and June (start of the rainy season) to exceeding 84 % around September (end of the rainy season; Taye et al. 2013). The concentration of sediments within an event runoff decreases as crops growing in cultivated fields even in an increasing rainfall (Gebreegziabher et al. 2009). The growth of crops protects the soil surface from raindrop impact and slowdown runoff speed (Gebreegziabher et al. 2009; Taye et al. 2013). On the contrary, our result was not consistent with the finding of Gebreegziabher et al. (2009), who reported increased total soil loss due to the rise in runoff volume in the Gum Selasa area of Southern Tigray. In line with this, Bewket and Sterk (2003) described that plowing the soil created large rainwater storage space, minimized soil erosion, and increases infiltration capacity. But, on the other hand, Taye et al. (2013) argued that the effect of tillage on water storage and infiltration was found to be minimal due to the impact of the raindrop, crust formation, and sediment infilling.

The contribution of peak rainfall events to the total seasonal sediment loss in the season was high. For instance, a peak rainfall event (53 mm) occurring on 28 June 2019 on bare and disturbed soils contributed 16.14, 15.31, and 15.33% of the total sediment loss from plots under P_new, P_old, and P_non, respectively. Similarly, seven rainfall events (with ≥ 30 mm) covering 20% of the total seasonal rainfall represents 66.7% of the seasonal sediment loss from the P_new. Most of these events are occurred in June and July where the land was barren and disturbed for sowing crop seeds. As a result, a high rainfall in the exposed land (without land cover) can cause easily and high removal of sediment. Besides, high and torrential rainfall with high intensity led to high flow accumulation and consequently has high energy to detach and transport sediments. The amount, intensity, size of raindrop, duration, pattern, and associated runoff exerts influence on erosion (Farhan and Nawaiseh 2015). In association with a high intensity of rainfall, the raindrop size, and its kinetic energy increases and strongly dispatch soil particles and aggregates. This can make the soil to be easily transported by runoff and/or fine particulates can cause clogging of soil pores and limit infiltration (Critchley et al. 1991a). Several research results reported the dominancy of some peak rainfall events from the catchment total soil loss. The contribution of daily peak sediment load in different catchments of the Debre Mewi watershed ranged from 25 to 75% (Dagnew et al. 2017). Gonzalez-Hidalgo et al. (2010) reported that five of the peak rainfall events produce about 50% of the total soil loss in different catchments in USA. Three largest rainfall events contributed from 25 to 71% of the total sediment loss in the central-western Pyrenees, Asia (Romero et al. 2012).

The event, monthly, and seasonal soil losses were relatively lower in the P_new followed by P_old, but it was exceptionally high in the P_non. In total, the highest amount of soil loss was observed in the P_non (58.15 t ha⁻¹), twice as much as in the P_new, and even 1.6 times higher than that of P_old (Table 4). The rate of soil loss in the P_new was found to be 23.5 t ha⁻¹ year⁻¹. Newly constructed soil bund reduced annual soil loss by 59.6 and 48.3% as compared to P_non and P_old, respectively. However, the observed difference between P_old and P_non was comparatively smaller, i.e., only 21.7% lower in the P_old. The total amount of soil loss during the rainy months was significantly reduced due to newly constructed soil bund (P_new) as compared to P_non (P < 0.05), but not with that of P_old and between P_old and P_non (P > 0.05; Table 3). As all plots were similar in all parameters other than bund treatment and age, the variations in sediment loss generated from experimental plots were attributed to the implementation of bund treatments and its age.

Several previously conducted studies reported a significant reduction of soil loss as a result of SWC implementation. Haregeweyn et al. (2012) and Taye et al. (2013) observed that conservation practices have reduced annual soil loss by 89% and 40% in northern Ethiopia. Adimassu et al. (2014) in the central highlands reported a soil loss rate of 24 t ha⁻¹ and 50 t ha⁻¹ from plots treated with soil bund and non-treated plots, respectively. On average, annually, sheet, rill, and tillage erosion contributed 57.26 t ha⁻¹ and 18.64 t ha⁻¹ in partially conserved and totally conserved cultivated plots in Zala Daget, northern Ethiopia (Nyssen et al. 2007). A comparatively lower amount of soil loss observed in the conserved plots is mainly attributed to a greater proportion of sediments trapped by the bund furrows. Similarly, Gebremichael et al. (2005) reported that a measured amount of 119 kg m⁻¹ year⁻¹ soil was accumulated behind stone bunds in Tigray highlands.

On the other hand, our findings have been much greater than that of the findings of Taye et al. (2013), who reported 7.2, 4.3, and 1.1 t ha⁻¹ in the non-treated, stone bund, and stone bund with trench-treated cultivated fields, respectively, in the Mayleba catchment. Similarly, rolling cultivated land treated with stone bunds generates 9.9 t ha⁻¹ year⁻¹ of soil due to sheet and rill erosion in the Zala Daget, northern Ethiopia (Nyssen et al. 2007). The observed variation may be caused due to the existence of high (~ 2000 mm long-term average) and erosive rainfall in the Gumara watershed as compared to its low depth in northern Ethiopia (724 mm long-term average in the Mayleba catchment). Sheet and rill erosion have relatively little importance in northern Ethiopia (Tigray), mainly due to the fact that much of the soils have already been removed, less rainfall, and active implementation of SWC implementation (Nyssen et al. 2007).

Research results in different parts of the world also acknowledged the effect of SWC. Plot-based evaluation of the effect of SWC conducted by Zhao et al. (2019) in China resulted in a soil loss rate of 3.5 times larger in non-conserved (28.63 t ha⁻¹ year⁻¹) than the conserved plots (8.63 t ha⁻¹ year⁻¹). Anache et al. (2017) reported that annual soil loss in the agricultural land ranges from 7.7 to 14.4 t ha⁻¹ year⁻¹ in Brazil. A plot data-based study result in Europe and the Mediterranean showed a mean annual soil loss rate of 10–20 t ha⁻¹ in bare soils, tree crops, and vineyards (Maetens et al. 2012b). A study by Panagos et al. (2015) in the European Union reported a mean soil erosion rate of 2.46 in the erosion prone areas including agricultural land. As compared to these, soil erosion in the Gumara watershed is relatively high. High rainfall, intensive cultivation, and heavy clay nature of the soil may cause the variation.

Bunds accumulate a greater proportion of sediments at its young age, but the rate of accumulation decreases with increasing age due to lack of regular maintenance (Gebremichael et al. 2005). The effect of SWC structures more likely diminishes with time due to damage of structures and sediment infilling (Taye et al. 2015; Gebreegziabher et al. 2009; Gebremichael et al. 2005). Similarly, in the current study, the amount of soil loss in the P_old was much greater than that of the P_new. This is due to the infilling of depression behind soil bunds with sediments by runoff erosion, tillage operations, and animal and human effects. This implies the significance of soil bund maintenance (renewing) on both runoff and soil loss reduction. However, structures in its new or old form affect the slope length and steepness, which can reduce soil erosion. Runoff travels at a high speed in steeper slopes, increases its shear stress on the surface, and transports a high amount of sediment (Wischmeier and Smith 1978).

In general, the result of this study showed that the implementation of SWC measures had reduced total soil loss significantly, particularly the newly constructed graded soil bund. However, the rate of soil loss observed in all the treatments is much greater than both the tolerable limit (1–6 t ha⁻¹ year⁻¹) (Hurni 1983b) and the rate of soil formation (10–14 t ha⁻¹ year⁻¹) estimated for the study area (for Gojjam, Hurni 1983a).

The relationship between rainfall-runoff-soil loss under different treatments

Monthly and annual rainfall-runoff relationship

The monthly and annual rainfall and runoff relationship under different treatments are shown in Fig. 6. In all the rainy months the correlation was strong but it becomes highest in August (R² = 0.988, 0.988, and 0.991 for P_new, P_old, and P_non, respectively). In total, the annual R² value was higher in the P_non (R² = 0.94) and lower in the P_new (R² = 0.87). The correlation of rainfall and runoff in P_new was not as strong as that of the P_old and P_non, because of the existence of bund furrows and its variation in the water holding capacity in different months and intensity of rainfall events. The high coefficient of determination result implies that monthly and annual rainfall and runoff have a positive strong relationship in all the treatments. Although significant variation was observed between treatments, the relationship of rainfall and runoff for all studied plots were strong (Fig. 6). This result is in agreement with the findings of Adimassu et al. (2014), who reported a strong and significant relationship between rainfall and runoff in the central highlands of Ethiopia.

Fig. 6

Monthly and annual rainfall-runoff relationship under different conservation treatments

The R² value for all plots showed that the correlation could not be altered by the implementation of SWC measures. This is an important indication that runoff is highly influenced by the prevailing rainfall regardless of the treatments.

Monthly and annual rainfall-soil loss relationship

Figure 7 shows the monthly and annual relationship between rainfall and soil loss for P_new, P_old, and P_non. The linear relationship indicates a strong correlation between rainfall and soil loss in all treatments. The R² value showed that the highest relationship for P_new (R² = 0.85) was observed in July but the lowest in all months as compared to P_old and P_non. The relationship continuously increases starting from June to August and starts to decline in September for all treatments. This might be related to the depth of rainfall and the crop cover of the land. The correlation was stronger in P_old for all months. On the other hand, the observed relationship between annual rainfall and soil loss was found much lower than that of monthly basis for all treatments (Fig. 7). But, as compared to rainfall with runoff, the correlation is less strong with soil loss. A strong and significant correlation between rainfall and soil loss was observed in the central highlands of Ethiopia (Adimassu et al. 2014).

Fig. 7

Rainfall-sediment loss relationship within plots treated with new soil bund, old soil bund, and non-treated

Monthly and annual runoff-soil loss relationship

A positive and strong correlation was observed between annual runoff and soil loss for all treatments (Fig. 8). The relationship of runoff and soil loss for P_new was stronger in June (R² = 0.86) and July (R² = 0.85) but decreased in August (R² = 0.75) and September (R² = 0.68). Although the reduction in R² was observed in P_old and P_non, the highest was recorded in the P_new. This is because the occurrence of a high amount of runoff on disturbed bare agricultural soils at the start of the rainy season can cause high runoff-sediment concentration and vice versa. But, at the ending (August and September), sediment concentration becomes very low due to crop covers and soil sealing, and most of it may be left behind bunds even during high runoff. In general, as compared to rainfall with runoff and soil loss, a less strong correlation was observed between runoff and soil loss. This implies that other factors such as land use/cover, the stability of the soil, and treatments are also important factors to sediment loss together with that of runoff depth. The result is in agreement with the findings of Adimassu et al. (2014) and Adimassu and Haile (2011), who reported a significant relationship between runoff and soil loss.

Fig. 8

Runoff-soil loss relationship within plots treated with new soil bund, old soil bund, and non-treated

Limitations of the study

This research had two main limitations. The first limitation is that the study used two replicates for each treatment. Because of its nature of high financial and labor requirements, the treatments were replicated two times. Secondly, the data was collected for 1 year (one rainy season comprising of greater than 70% the annual rainfall). This is mainly because of the financial limitations of the study. Therefore, the results of the study can be interpreted in view of these limitations. Further studies with large number of replicates of treatments and covering more rainfall seasons are recommended to consider the effect of seasonal variations and better average results from replicates.

Conclusion and implications

This study investigated the effect of the most commonly implemented graded soil bund (new and 11 years) in reducing runoff and soil loss. Rainfall, runoff, and sediment concentration were observed using erosion plots in the 2019 summer rainfall months. The results of the study showed that graded soil bund in its new form significantly reduced runoff, runoff coefficient, and soil loss (P < 0.05) but the effect of its old equivalent was only on runoff coefficient (P < 0.05). P_new reduced runoff by 34.94% and 25.56% as compared to that of the old and non-treated counterparts, respectively. However, the effect of the P_old (12.6%) was much lower than that of the P_new. Runoff and runoff coefficient continuously increased from the start to the end of the rainy season. It is mainly due to increased saturation of the soil and crop cover at the end of the rainy season and vice versa. Similarly, the highest amount of soil loss was observed in the P_non, twice as much as in the P_new and even 1.6 times higher than that of P_old. The rate of soil loss in the P_new, P_old, and P_non was found to be 23.5, 45.56, and 58.15 t ha⁻¹ year⁻¹, respectively. This shows a net soil loss reduction by 59.6 and 48.3% compared to the old and non-treated plots. Sediment concentration and total soil loss were very high at the beginning of the rainy season (June and July) than at the ending, because, at the start, most of the cultivated land was bare and disturbed through tillage, which makes the soil easily detachable, transportable, and vulnerable to splash and rill erosion. Later on, the concentration becomes reduced due to the stabilization of the soil and improved crop cover.

P_new with furrow depressions was found most effective in runoff and sediment loss reduction as compared to the P_old and P_non. The reduction in runoff and sediment loss in the P_new is attributed to the furrows constructed as depressions to trap runoff and soil loss. However, the effect of bunds was not limited due to furrows with sufficient depressions and also in old soil bunds in which furrows are nearly totally filled with sediments. In general, conservation structures showed important implications to reduce runoff and sediment loss in the sub-humid Gumara watershed. The runoff and soils protected from erosion can improve ground water recharge, soil fertility, better plant growth, and finally increase agricultural productivity. A positive and significant correlation was observed between rainfall, runoff, and soil loss regardless of the treatments.

Although soil bund reduced a significant amount of runoff and sediment loss, the net soil loss even in treated plots was very high. Thus, graded soil bunds need to be supported by different SWC measures that can facilitate infiltration and trap sediments such as grass strips, physical structures, and agro-forestry practices with leguminous trees. Therefore, it is recommended that the government together with the local residents and NGOs (where possible) need to develop a culture of regular maintenance and implement supportive SWC measures at the micro-watershed level for sustained reduction of soil erosion and make it below the tolerance limit.
